VI-ARMB-C22 footprint, schematic symbol and 3D model by VICOR

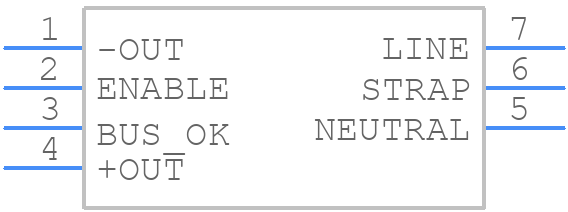

Symbol

click to zoom

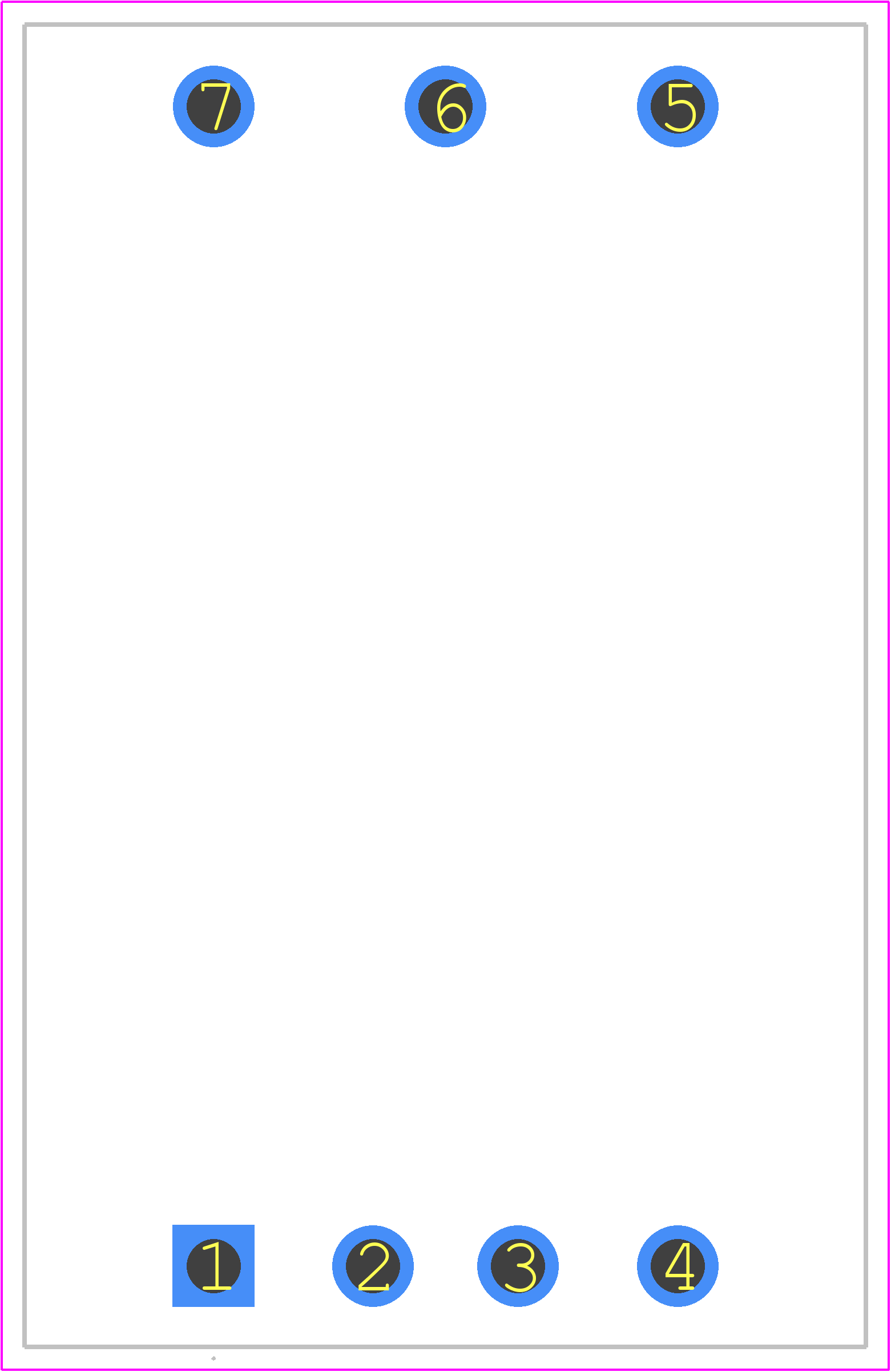

PCB Footprints

VI-ARMB-C22 - VICOR PCB footprint - Other - Other - VI-ARMB-C22

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VI-ARMB-C22
Part Number VI-ARMB-C22
Manufacturer VICOR
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - VI-ARMB-C22
Released Date Apr 23, 2026
Last Modified Date Apr 24, 2026 3:30 AM UTC
Pinout / Pin List Click Here (Member Only)

VI-ARMB-C22 Details

Manufacturer Part Number:
VI-ARMB-C22
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-7
Pin Count:
7
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
4
Additional Feature:
500W POWER IN DOUBLER MODE; 180 TO 264VAC INPUT, 750W POWER IN BRIDGE MODE
Analog IC - Other Type:
AC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Max:
264 V
Input Voltage-Min:
90 V
Input Voltage-Nom:
120 V
JESD-30 Code:
R-XDFM-P7
JESD-609 Code:
e0
Length:
57.91 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-20 °C
Output Voltage-Max:
375 V
Output Voltage-Min:
200 V
Output Voltage-Nom:
230 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
1500 W
Trim/Adjustable Output:
NO
Width:
36.83 mm

VI-ARMB-C22 Frequently Asked Questions (FAQs)

Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink. Vicor provides a reference design and thermal modeling tools to help with the design process.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current and a shutdown circuit to prevent voltage spikes. The datasheet provides guidelines for designing these circuits.
Operating the module outside of the recommended input voltage range can affect its efficiency, reliability, and performance. Vicor recommends staying within the specified input voltage range to ensure optimal performance and to prevent damage to the module.
Vicor provides a fault detection and reporting mechanism through the module's status pins. Engineers can use these pins to monitor the module's status and troubleshoot issues. Vicor also provides a troubleshooting guide and application notes to help with fault diagnosis and resolution.
The VI-ARMB-C22 module is designed to meet CISPR 22 Class B EMI standards. Vicor recommends following proper PCB layout and shielding techniques, as well as using EMI filters and common-mode chokes to minimize EMI emissions and ensure EMC compliance.

Trust Checks

Community Provided

System Verified

Community Approved

VI-ARMB-C22 Overview

Use the download button to access the VI-ARMB-C22 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VI-AR, or try a keyword search, such as Power Supply Modules
