- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for VI-RAM-E1
- Part Number VI-RAM-E1
- Manufacturer VICOR
- Pin Count 9
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - VI-RAM-E1-2
- Released Date Oct 19, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
VI-RAM-E1 Details
-
Manufacturer Part Number:
VI-RAM-E1
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Package Description:
Module-9
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Vicor Corporation
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
R-XDMA-P9
-
JESD-609 Code:
e0
-
Number of Functions:
1
VI-RAM-E1 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the VI-RAM-E1 is -40°C to +100°C, with a derated power output above 85°C.
-
Proper thermal management for the VI-RAM-E1 can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a suitable thermal interface material.
-
The recommended input voltage range for the VI-RAM-E1 is 36V to 60V, with a maximum input voltage of 62V for short-term transients.
-
Yes, the VI-RAM-E1 is designed to meet the requirements of high-reliability and military applications, with options for screening and testing to meet specific standards such as MIL-STD-883.
-
The VI-RAM-E1 can be configured for a specific output voltage using external resistors or a digital interface, depending on the specific model and options chosen.
Trust Checks
System Verified
VI-RAM-E1 Overview

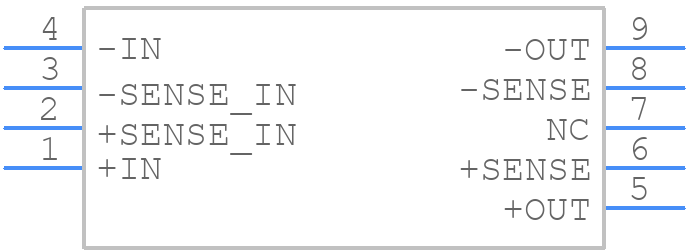

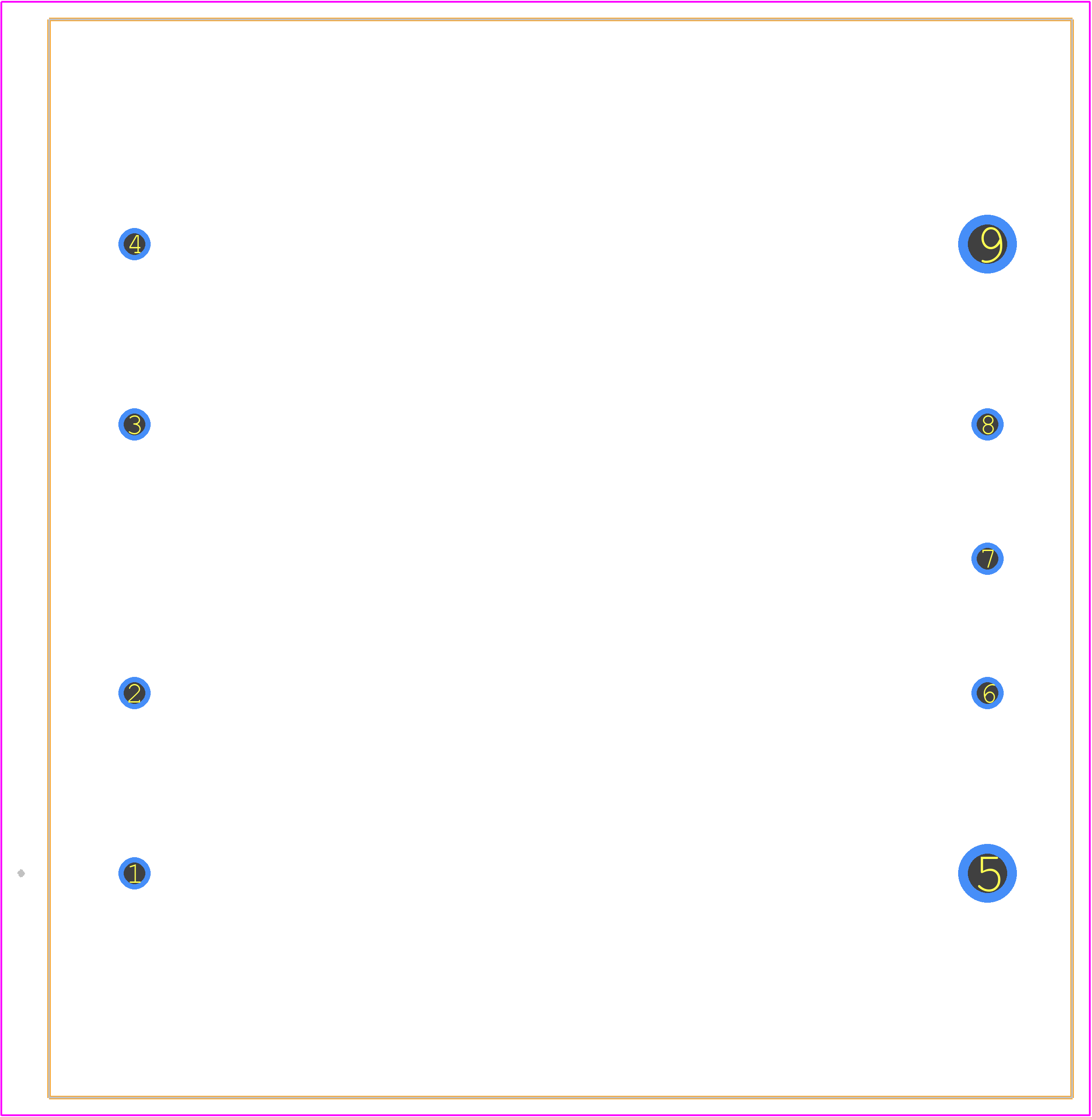

Use the download button to access the VI-RAM-E1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VI-RA,
or try a keyword search, such as Other Signal Circuits
