VI0721550000G footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

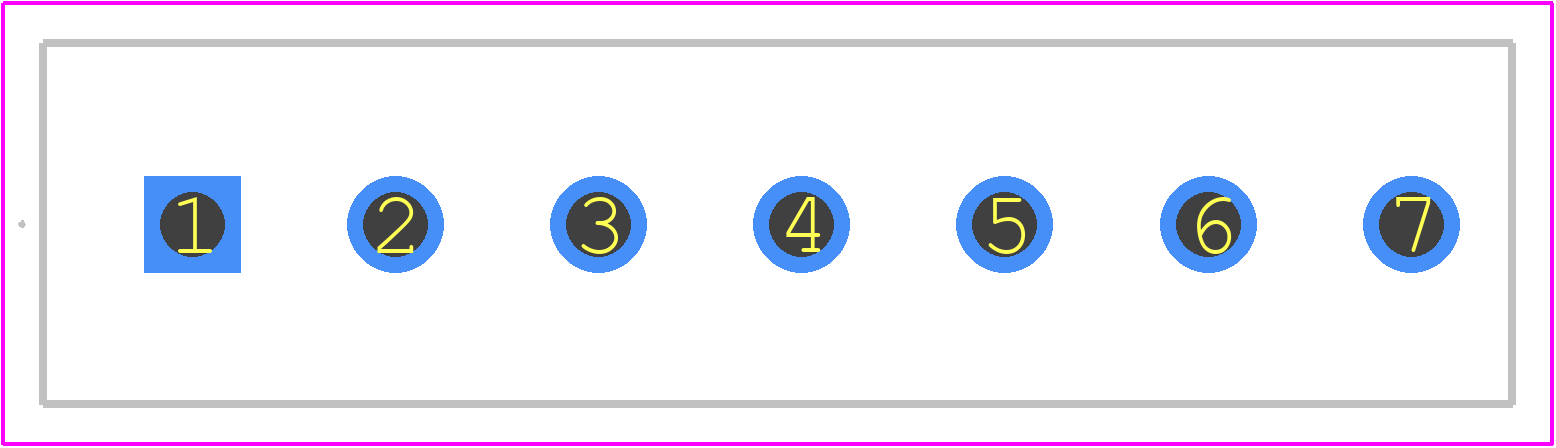

VI0721550000G - Amphenol PCB footprint - Other - Other - VI0721550000G-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VI0721550000G
Part Number VI0721550000G
Manufacturer Amphenol
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - VI0721550000G-2
Released Date May 20, 2026
Last Modified Date May 20, 2026 6:45 AM UTC
Pinout / Pin List Click Here (Member Only)

VI0721550000G Details

Manufacturer Part Number:
VI0721550000G
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Factory Lead Time:
12 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
6.81
Additional Feature:
STANDARD: UL 94V-0, POLYETHYLENE
Fastening Method:
SCREW CLAMP
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
7
Rated Current:
16 A
Rated Voltage:
300 V
Safety Approval:
CUL; UL
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
Wire Cross Section:
3.31 mm2
Wire Gauge:
12 AWG

VI0721550000G Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
Yes, the VI0721550000G is designed to withstand vibrations up to 10g (sinusoidal) and 20g (random) according to IEC 61373 Cat. 2. However, it's recommended to consult with Amphenol's application engineers to ensure the connector meets the specific requirements of your application.
The VI0721550000G has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
The VI0721550000G has a nickel-plated copper alloy shell and meets the requirements of IEC 60529 IP67. It can withstand exposure to salt spray and moisture, but it's recommended to apply additional protection, such as conformal coating or potting, for extreme environmental conditions.
The VI0721550000G has a mating cycle life of 500 cycles minimum. This means the connector can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.

Trust Checks

Community Provided

System Verified

Community Approved

VI0721550000G Overview

Use the download button to access the VI0721550000G schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VI072, or try a keyword search, such as Terminals and Terminal Blocks
