VIPER12ASTR-E - STMicroelectronics

Description: Fixed 60 kHz switching frequency ■ 9 V to 38 V wide range VDD voltage ■ Current mode control ■ Auxiliary undervoltage lockout with hysteresis ■ High voltage start-up current source ■ Overtemperature, overcurrent and overvoltage protection with auto-restart ■ Typical power capability – European (195 - 265 Vac) 8 W for SO-8, 13 W for DIP-8 – European (85 - 265 Vac) 5 W for SO-8, 8 W for DIP-8

Download VIPER12ASTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

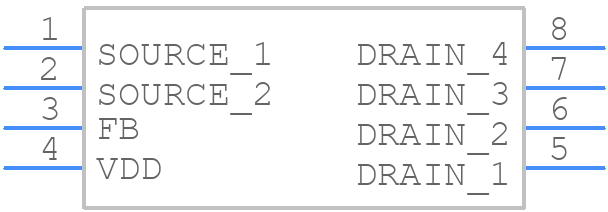

VIPER12ASTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER12ASTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - -SO-8 mechanical data--
click to zoom
3D Models
VIPER12ASTR-E - STMicroelectronics - 3D model - Small Outline Packages - -SO-8 mechanical data--
click to zoom

VIPER12ASTR-E Details

  • Manufacturer Part Number:

    VIPER12ASTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current-Max:

    0.48 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

VIPER12ASTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The transformer selection depends on the input voltage, output voltage, and power rating. STMicroelectronics provides a transformer selection guide in the datasheet, and also recommends using their online transformer selection tool to find the optimal transformer for your design.
  • The VIPER12ASTR-E has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to keep the junction temperature below 150°C.
  • Follow the EMC guidelines in the datasheet, use a shielded transformer, and ensure proper PCB layout and routing to minimize electromagnetic interference. Additionally, use EMI filters and shielding if necessary to meet the required EMC standards.
  • Ensure the device is used within the recommended operating conditions, follow the safety guidelines in the datasheet, and use protective components such as fuses and varistors to prevent overvoltage and overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER12ASTR-E Overview

Use the download button to access the VIPER12ASTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
