VIPER20ADIP-E - STMicroelectronics

Description: SMPS primary I.C.

Download VIPER20ADIP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

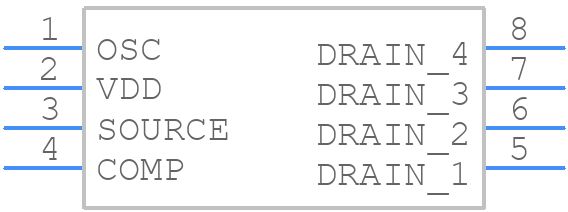

Symbol
VIPER20ADIP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER20ADIP-E - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP_8
click to zoom

VIPER20ADIP-E Details

  • Manufacturer Part Number:

    VIPER20ADIP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    13 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current-Max:

    0.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    16 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    MOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.62 mm

VIPER20ADIP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The transformer selection depends on the specific application requirements, such as output voltage, current, and power rating. STMicroelectronics provides a transformer selection guide in the application note AN4571, which includes guidelines for selecting the right transformer for the VIPER20ADIP-E.
  • The VIPER20ADIP-E has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The VIPER20ADIP-E has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The application note AN4571 provides a detailed example of how to implement OVP with the VIPER20ADIP-E.
  • The VIPER20ADIP-E is designed to meet EMI and EMC standards, but it's still important to follow good design practices, such as using a shielded transformer, minimizing loop areas, and using EMI filters to reduce electromagnetic interference.
