VIPER22AS-E - STMicroelectronics

Description: VIPER22AS-E, PWM Current Mode Controller, Forward, 60kHz 50V, 8-Pin SO-8

Download VIPER22AS-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

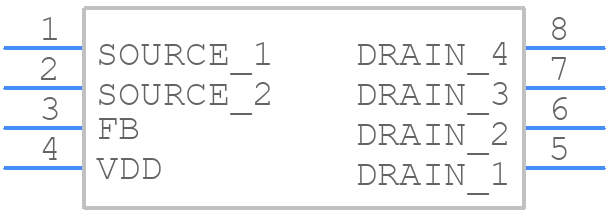

VIPER22AS-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER22AS-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-7
click to zoom
3D Models
VIPER22AS-E - STMicroelectronics - 3D model - Small Outline Packages - SO-8-7
click to zoom

VIPER22AS-E Details

  • Manufacturer Part Number:

    VIPER22AS-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current-Max:

    0.84 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

VIPER22AS-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-voltage traces. The datasheet provides a recommended PCB layout, but it's essential to follow good PCB design practices to minimize EMI and ensure reliable operation.
  • The VIPER22AS-E has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material (TIM) to ensure efficient heat dissipation. A thermal resistance of <1°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
  • The maximum allowed voltage on the VCC pin is 28V, but it's recommended to keep it below 25V to ensure reliable operation and minimize the risk of damage. Exceeding the maximum voltage can cause permanent damage to the device.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device. A voltage supervisor or a dedicated OVP/OCP IC can be used to monitor the input voltage and current. Additionally, consider using a fuse or a PTC resettable fuse to protect against overcurrent conditions.
  • A low-ESR ceramic capacitor with a value of 1-10uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER22AS-E Overview

Use the download button to access the VIPER22AS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers
