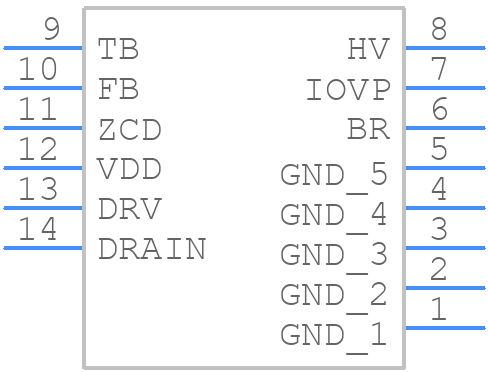

VIPERGAN65DTR - STMicroelectronics

VIPERGAN65DTR Details

• Manufacturer Part Number:

  VIPERGAN65DTR

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  8

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  23 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  14 V

• JESD-30 Code:

  R-PDSO-G16

• Length:

  9.906 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE

• Seated Height-Max:

  1.68 mm

• Supply Current-Max (Isup):

  3.2 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  330 kHz

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.2 mm

• Terminal Position:

  DUAL

• Width:

  3.861 mm
