A good PCB layout for the VL-2320/HFN involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
To ensure the VL-2320/HFN operates within its specified temperature range, provide adequate heat dissipation, avoid overheating, and use a thermal interface material (TIM) if necessary. Also, consider using a heat sink or a thermal management system.
When handling the VL-2320/HFN, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and avoid touching the pins or leads. Also, handle the device by the body, not the leads, and avoid bending or flexing the leads.
To troubleshoot issues with the VL-2320/HFN, check the input voltage, output load, and PCB layout. Verify that the device is operated within its specified temperature range and that the input and output capacitors are properly selected. Use an oscilloscope to measure the output voltage and check for noise or oscillations.
The VL-2320/HFN is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. Consider using a device with a higher reliability rating, such as automotive or industrial grade, and ensure that the device is properly derated and qualified for the specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VL-2320/HFN Overview

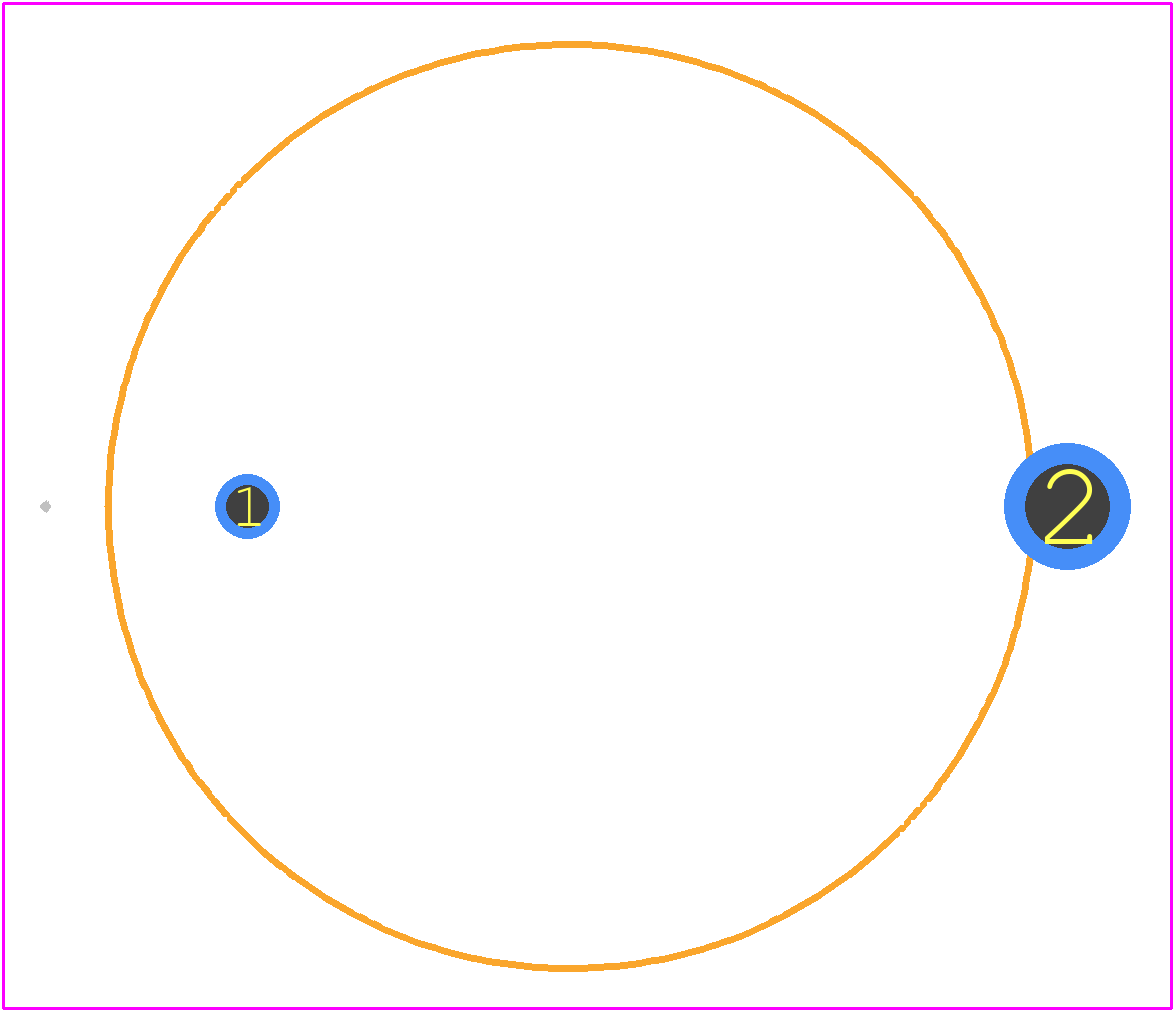

Use the download button to access the VL-2320/HFN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VL-23,
or try a keyword search, such as Batteries
