VL-2330/HFN footprint, schematic symbol and 3D model by Panasonic

Symbol

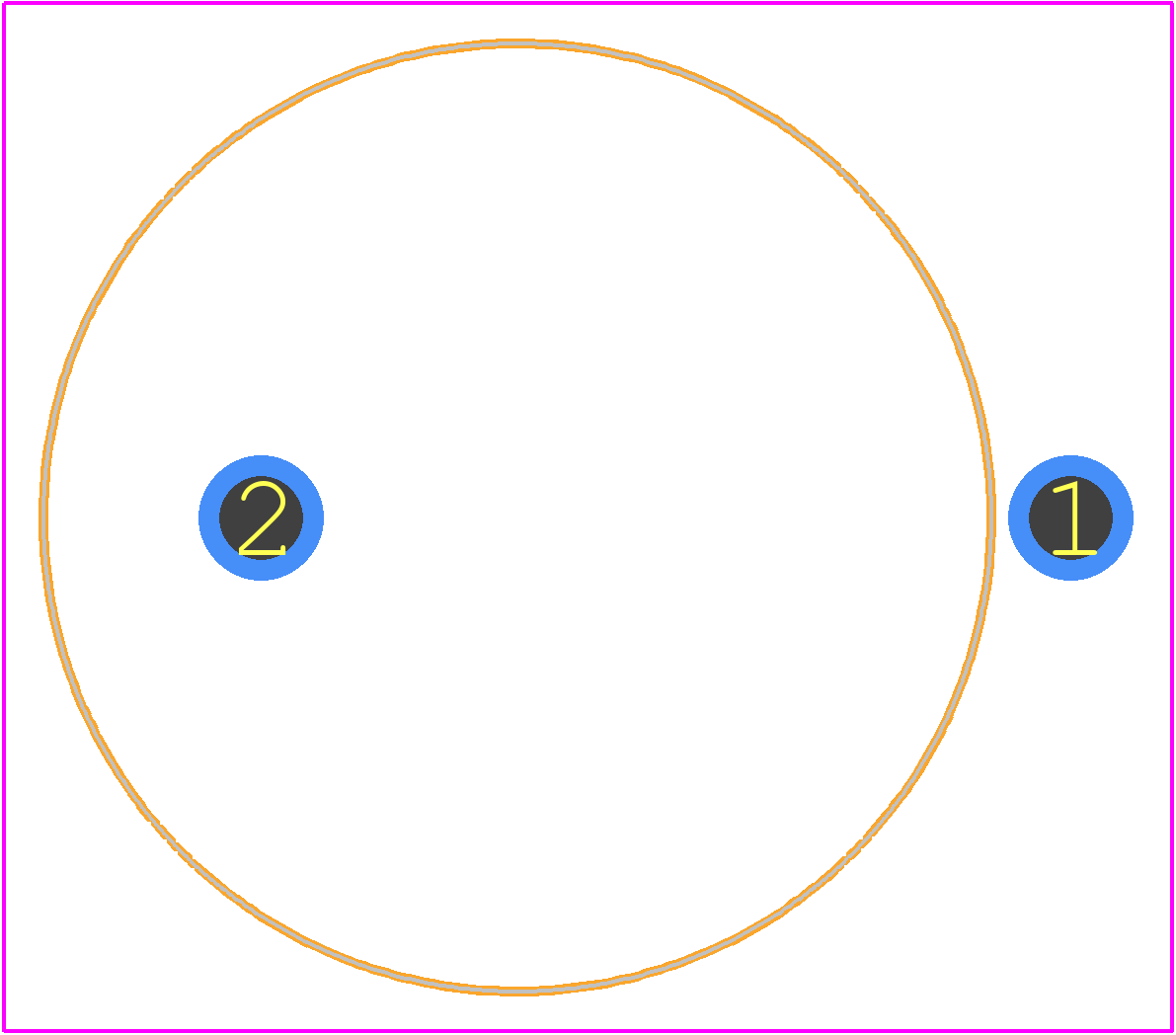

PCB Footprints

3D Models

VL-2330/HFN Details

Store the components in a dry, cool place, away from direct sunlight, and avoid exposure to moisture, dust, and extreme temperatures.
Handle the components by the body, avoid touching the leads or pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
The maximum allowable voltage is 1.5 times the rated voltage, but it's recommended to operate within the rated voltage to ensure reliability and longevity.
While the VL-2330/HFN is rated for up to 125°C, it's recommended to derate the voltage and current according to the temperature derating curve to ensure reliability and prevent overheating.
Use a soldering iron with a temperature of 350°C or less, and avoid applying excessive force or vibration during the soldering process.

Expert Contribution

System Verified

Community Approved

Use the download button to access the VL-2330/HFN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VL-23, or try a keyword search, such as Batteries
