VL53L0CXV0DH/1 - STMicroelectronics

Description: STMICROELECTRONICS - VL53L0CXV0DH/1 - GESTURE DETECTION SENSOR, DIGITAL, LGA12

Download VL53L0CXV0DH/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

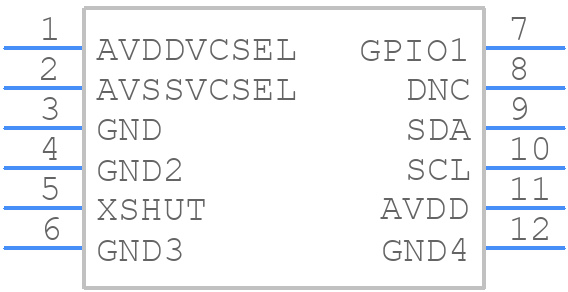

VL53L0CXV0DH/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L0CXV0DH/1 - STMicroelectronics PCB footprint - Other - Other - LGA12_1
click to zoom
3D Models
VL53L0CXV0DH/1 - STMicroelectronics - 3D model - Other - LGA12_1
click to zoom

VL53L0CXV0DH/1 Details

  • Manufacturer Part Number:

    VL53L0CXV0DH/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 X 2.40 MM, 1 MM HEIGHT, ROHS COMPLIANT, LGA-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.4 mm

VL53L0CXV0DH/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and land pattern in the VL53L0CXV0DH/1 application note (AN5264) and the device's evaluation board design files. It's essential to follow these guidelines to ensure optimal performance and minimize noise.
  • Calibration is not required for the VL53L0CXV0DH/1, as it is a self-calibrating device. However, it's essential to follow the recommended initialization and configuration procedures outlined in the datasheet to ensure optimal performance.
  • The VL53L0CXV0DH/1 is rated for operation from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It's essential to consider the operating temperature range when designing your application.
  • The VL53L0CXV0DH/1 is not designed for use in high-humidity or high-temperature environments. If your application requires operation in such conditions, you may need to consider additional protection measures, such as conformal coating or environmental sealing.
  • The VL53L0CXV0DH/1 provides interrupt signals to indicate when a measurement is complete or when an error occurs. You should connect these interrupt signals to a suitable GPIO pin on your microcontroller and handle the interrupts accordingly in your firmware.
