VL53L3CXV0DH/1 - STMicroelectronics

Description: Time-of-Flight ranging sensor with multitarget detection

Download VL53L3CXV0DH/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

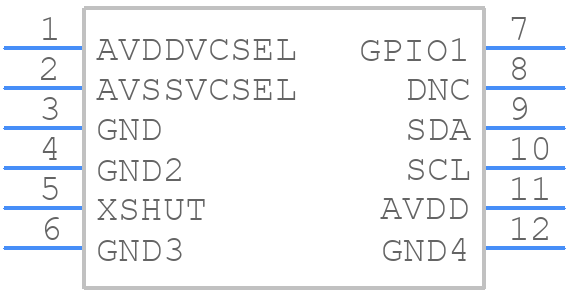

VL53L3CXV0DH/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L3CXV0DH/1 - STMicroelectronics PCB footprint - Other - Other - VL53L3CXV0DH/1-1
click to zoom
3D Models
VL53L3CXV0DH/1 - STMicroelectronics - 3D model - Other - VL53L3CXV0DH/1-1
click to zoom

VL53L3CXV0DH/1 Details

  • Manufacturer Part Number:

    VL53L3CXV0DH/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-02-07

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • JESD-609 Code:

    e4

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

VL53L3CXV0DH/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the VL53L3CXV0DH/1 application note (AN5289). It's essential to follow this layout to ensure optimal performance and minimize noise.
  • The VL53L3CXV0DH/1 does not require calibration. It is a plug-and-play device, and the internal calibration is done during the manufacturing process. However, you may need to perform a one-time initialization sequence to configure the device.
  • The VL53L3CXV0DH/1 can operate in a temperature range of -40°C to 85°C. However, the device's accuracy and range may be affected at extreme temperatures.
  • The VL53L3CXV0DH/1 is not designed for use in high-humidity environments. It's recommended to use the device in environments with a relative humidity below 60%. For high-humidity applications, consider using a different device or implementing additional protection measures.
  • The VL53L3CXV0DH/1 uses a standard I2C bus. Make sure to follow the I2C bus specifications and use pull-up resistors on the SCL and SDA lines. Also, ensure that the I2C bus frequency does not exceed 400 kHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VL53L3CXV0DH/1 Overview

Use the download button to access the VL53L3CXV0DH/1 schematic symbol, PCB footprint, and 3D model.
