VL53L4CDV0DH/1 - STMicroelectronics

Description: Time-of-Flight high accuracy low power proximity sensor

Download VL53L4CDV0DH/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

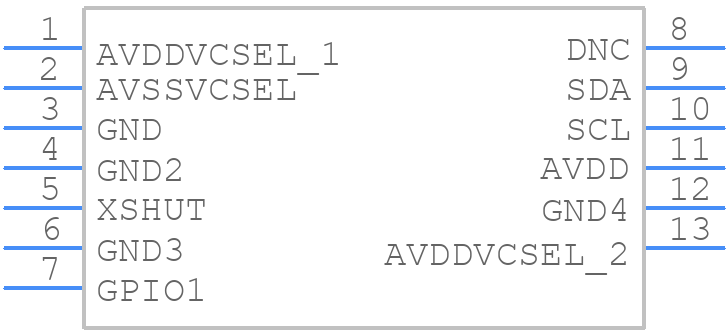

VL53L4CDV0DH/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L4CDV0DH/1 - STMicroelectronics PCB footprint - Other - Other - Optical LGA12
click to zoom
3D Models
VL53L4CDV0DH/1 - STMicroelectronics - 3D model - Other - Optical LGA12
click to zoom

VL53L4CDV0DH/1 Details

  • Manufacturer Part Number:

    VL53L4CDV0DH/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

VL53L4CDV0DH/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and land pattern in the VL53L4CDV0DH/1 application note (AN5271). It's essential to follow this layout to ensure optimal performance and minimize noise.
  • Calibration is not required for the VL53L4CDV0DH/1, as it is a self-calibrating device. However, it's essential to follow the recommended initialization sequence and settings outlined in the datasheet to ensure optimal performance.
  • The VL53L4CDV0DH/1 operates within a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider thermal management in your design.
  • Yes, the VL53L4CDV0DH/1 can be used in a multi-sensor configuration. However, it's essential to ensure that the sensors are properly synchronized and that the system is designed to minimize interference between sensors.
  • The VL53L4CDV0DH/1 has a minimum distance range of 30 mm and a maximum distance range of 4 meters. However, the actual range may vary depending on the target reflectivity and ambient light conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VL53L4CDV0DH/1 Overview

Use the download button to access the VL53L4CDV0DH/1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VL53L, or try a keyword search, such as Other Signal Circuits
