VL53L4CXV0DH/1 - STMicroelectronics

Description: Proximity Sensor Time of Flight(TOF) 600cm 2.6V to 3.5VDC 12-Pin LGA T/R

Download VL53L4CXV0DH/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

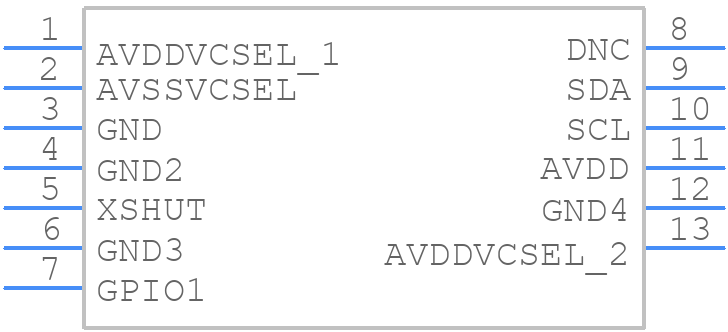

VL53L4CXV0DH/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L4CXV0DH/1 - STMicroelectronics PCB footprint - Other - Other - VL53L4CXV0DH/1-2
click to zoom
3D Models
VL53L4CXV0DH/1 - STMicroelectronics - 3D model - Other - VL53L4CXV0DH/1-2
click to zoom

VL53L4CXV0DH/1 Details

  • Manufacturer Part Number:

    VL53L4CXV0DH/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

VL53L4CXV0DH/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and design guide in their application note AN5484, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The VL53L4CXV0DH/1 has a built-in calibration procedure that can be initiated through the I2C interface. The sensor also has a self-calibration feature that can be enabled through the API. Refer to the API documentation and the application note AN5484 for more information.
  • The VL53L4CXV0DH/1 has an operating temperature range of -40°C to 85°C. However, the optimal operating temperature range for best performance is between 0°C to 60°C.
  • To minimize noise and interference, ensure proper PCB design and layout, use a low-pass filter to remove high-frequency noise, and implement noise reduction algorithms in the firmware. Additionally, consider using a shielded cable for the I2C interface.
  • Use a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the sensor's power pins. This will help to filter out noise and ensure stable power supply.
