Please enter a minimum 3 letters or numbers
Technical Content
Part Image

VL53L5CXV0GC/1 - STMicroelectronics

Description: Proximity Sensors Time-of-Flight 8x8 multizone ranging sensor with wide field of view

Download VL53L5CXV0GC/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

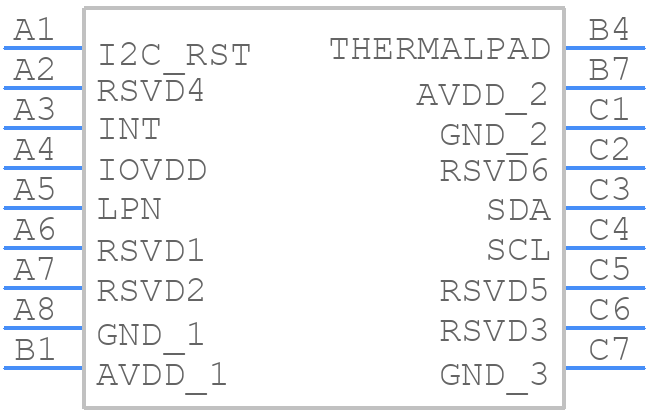

VL53L5CXV0GC/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L5CXV0GC/1 - STMicroelectronics PCB footprint - Other - Other - VL53L5CXV0GC/1
click to zoom
3D Models
VL53L5CXV0GC/1 - STMicroelectronics - 3D model - Other - VL53L5CXV0GC/1
click to zoom

VL53L5CXV0GC/1 Details

  • Manufacturer Part Number:

    VL53L5CXV0GC/1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE

  • Body Breadth:

    3.03 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    6.4 mm

  • JESD-609 Code:

    e4

  • Measurement Range-Max (mm):

    4000 mm

  • Measurement Range-Min (mm):

    20 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    50 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.4-2.1V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    0.12 µs

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Termination Type:

    SOLDER

VL53L5CXV0GC/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in their application notes and evaluation boards. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
  • The VL53L5CXV0GC/1 has a built-in calibration process that can be initiated through the I2C interface. STMicroelectronics provides a calibration protocol and software tools to assist with the calibration process.
  • The VL53L5CXV0GC/1 is rated for operation from -40°C to 85°C. However, the optimal operating temperature range for best performance is between 0°C to 60°C.
  • STMicroelectronics recommends using noise reduction techniques such as averaging, filtering, and shielding to minimize the impact of noise and interference on the VL53L5CXV0GC/1's measurements.
  • Yes, the VL53L5CXV0GC/1 can be used in a multi-sensor configuration. However, it's essential to ensure that the sensors are properly synchronized and calibrated to avoid interference and ensure accurate measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VL53L5CXV0GC/1 Overview

Use the download button to access the VL53L5CXV0GC/1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VL53L, or try a keyword search, such as Linear Position Sensors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Parts related to VL53L5CXV0GC/1

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
