VL53L7CXV0GC/1 - STMicroelectronics

Description: Time-of-Flight 8x8 multizone ranging sensor with 90 degrees FoV

Download VL53L7CXV0GC/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

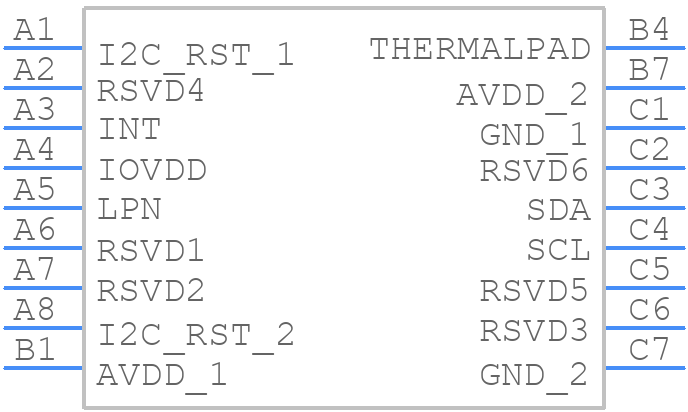

VL53L7CXV0GC/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L7CXV0GC/1 - STMicroelectronics PCB footprint - Other - Other - Optical LGA16 with liner
click to zoom
3D Models
VL53L7CXV0GC/1 - STMicroelectronics - 3D model - Other - Optical LGA16 with liner
click to zoom

VL53L7CXV0GC/1 Details

  • Manufacturer Part Number:

    VL53L7CXV0GC/1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Body Breadth:

    3.03 mm

  • Body Height:

    1.6 mm

  • Body Length or Diameter:

    6.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.40-2.10V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Termination Type:

    SOLDER

VL53L7CXV0GC/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the VL53L7CXV0GC/1 application note (AN5481) which includes guidelines for component placement, routing, and grounding to ensure optimal performance.
  • The VL53L7CXV0GC/1 does not require calibration. It is a plug-and-play device that comes pre-calibrated from the factory. However, it's recommended to perform a ranging test after assembly to ensure the sensor is functioning correctly.
  • The VL53L7CXV0GC/1 can operate in a temperature range of -40°C to 85°C. However, the optimal operating temperature range for best performance is between 0°C to 60°C.
  • Yes, the VL53L7CXV0GC/1 is designed to operate in a relative humidity range of 5% to 95%. However, it's recommended to take precautions to prevent moisture ingress and ensure the sensor is properly sealed to maintain its performance.
  • The VL53L7CXV0GC/1 has a minimum distance range of 30 mm and a maximum distance range of 4000 mm. However, the optimal distance range for best performance is between 50 mm to 2000 mm.
