VL53L8CXV0GC/1 - STMicroelectronics

Description: Low-power high-performance 8x8 multizone Time-of-Flight sensor 940 nm, 6.4x3.0x1.75 mm, -30 to 85°C

Download VL53L8CXV0GC/1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

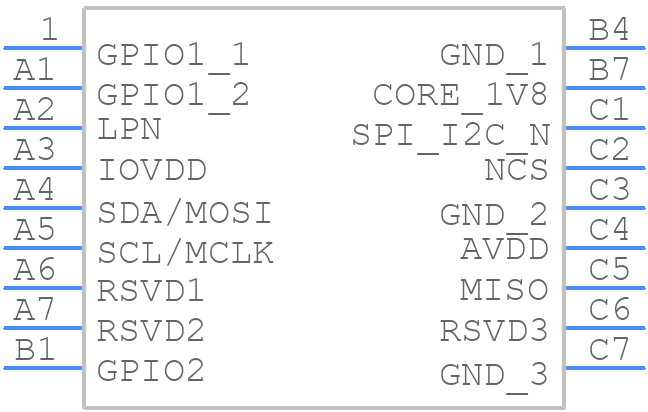

Symbol
VL53L8CXV0GC/1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VL53L8CXV0GC/1 - STMicroelectronics PCB footprint - Other - Other - OPTICAL LGA 6.40X3.03 16 PINS_1
click to zoom
3D Models
VL53L8CXV0GC/1 - STMicroelectronics - 3D model - Other - OPTICAL LGA 6.40X3.03 16 PINS_1
click to zoom

VL53L8CXV0GC/1 Details

  • Manufacturer Part Number:

    VL53L8CXV0GC/1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Additional Feature:

    IT ALSO REQUIRES 3.3 V NOMINAL SUPPLY VOLTAGE

  • Body Breadth:

    3.33 mm

  • Body Height:

    1.796 mm

  • Body Length or Diameter:

    6.4 mm

  • JESD-609 Code:

    e4

  • Measurement Range-Max (mm):

    4000 mm

  • Measurement Range-Min (mm):

    200 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Interface Type:

    I2C/SPI

  • Output Range:

    0.24-0.96V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Termination Type:

    SOLDER

VL53L8CXV0GC/1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the VL53L8CXV0GC/1 application note (AN5481). It's essential to follow this layout to ensure optimal performance and minimize noise.
  • The VL53L8CXV0GC/1 does not require calibration. It is a plug-and-play device, and the calibration is done internally during the manufacturing process.
  • The VL53L8CXV0GC/1 can operate in a temperature range of -40°C to 85°C. However, the optimal operating temperature range is between 0°C to 60°C for best performance.
  • Yes, the VL53L8CXV0GC/1 is designed to operate in a relative humidity range of 5% to 95%. However, it's essential to ensure the device is properly sealed and protected from moisture to prevent damage.
  • The VL53L8CXV0GC/1 can measure distances from 30 mm to 4 meters. However, the optimal measurement range is between 50 mm to 2 meters for best accuracy.
