- Part Number VL6180V1NR/1
- Manufacturer STMicroelectronics
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - VL6180V1NR/1
- Released Date Nov 17, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
VL6180V1NR/1 Details
-
Manufacturer Part Number:
VL6180V1NR/1
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
JESD-609 Code:
e4
-
Sensors/Transducers Type:
LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL
-
Terminal Finish:
Nickel/Gold (Ni/Au)
VL6180V1NR/1 Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4545, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
-
The VL6180V1NR/1 requires a one-time calibration process to adjust the sensor's offset and gain. This can be done using the STSW-IMG005 software development kit (SDK) provided by STMicroelectronics, which includes a calibration tool and example code.
-
The VL6180V1NR/1 is specified to operate from -20°C to 70°C, but it can be extended to -40°C to 85°C with some performance degradation. However, it's essential to ensure proper thermal management and follow the recommended PCB layout to maintain optimal performance.
-
The VL6180V1NR/1 is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, STMicroelectronics provides a moisture-sensing feature that can detect humidity levels and alert the system to potential issues.
-
To ensure reliable communication in noisy environments, use a pull-up resistor on the I2C lines, and consider implementing error-checking mechanisms, such as CRC or checksum, to detect and correct data transmission errors.
Trust Checks
Community Provided
System Verified
Community Approved
VL6180V1NR/1 Overview

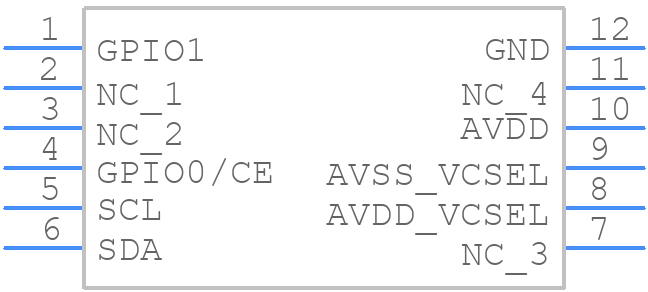

Use the download button to access the VL6180V1NR/1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VL618,
or try a keyword search, such as Linear Position Sensors
