- Part Number VLA106-15151
- Manufacturer POWEREX
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - VLA106-15151-1
- Released Date Dec 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
VLA106-15151 Details
-
Manufacturer Part Number:
VLA106-15151
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
MODULE
-
Package Description:
SIP-7
-
Pin Count:
7
-
ECCN Code:
EAR99
-
Manufacturer:
Powerex Power Semiconductors
-
YTEOL:
5
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
VLA106-15151 Frequently Asked Questions (FAQs)
-
A good PCB layout for the VLA106-15151 should prioritize thermal dissipation. Ensure a large copper area for heat sinking, use thermal vias to connect the top and bottom layers, and keep the component away from other heat sources. Consult Powerex's application notes or seek guidance from a thermal expert for specific design recommendations.
-
When selecting a gate driver for the VLA106-15151, consider the module's gate-emitter voltage (VGE) rating, peak current, and switching frequency. Choose a gate driver that can provide the required voltage and current, and ensure it is compatible with the module's internal gate resistance. Consult Powerex's application notes or gate driver manufacturers' datasheets for guidance.
-
The VLA106-15151 should be mounted using M4 screws with a torque of 1.5-2.5 Nm. Ensure the screws are tightened evenly and in a star pattern to prevent damage to the module. Consult Powerex's mounting instructions or the datasheet for specific guidance.
-
To protect the VLA106-15151 from overvoltage and overcurrent conditions, use a suitable snubber circuit, overvoltage protection (OVP) devices, and current sensing resistors. Implement a gate drive circuit with built-in overcurrent protection, and consider using a dedicated overcurrent protection IC. Consult Powerex's application notes or seek guidance from a power electronics expert.
-
The VLA106-15151 can be cooled using natural convection, forced air cooling, or liquid cooling. Ensure good airflow around the module, and consider using a heat sink or thermal interface material to improve heat transfer. Consult Powerex's thermal management guidelines or seek guidance from a thermal expert for specific design recommendations.
Trust Checks
Community Provided
System Verified
Community Approved
VLA106-15151 Overview

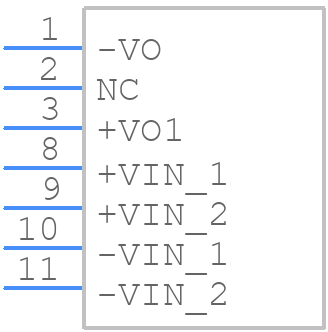

Use the download button to access the VLA106-15151 schematic symbol, PCB footprint, and 3D model.
