VLA106-15242 - POWEREX

Description: DC DC CONVERTER 24V 2W

Download VLA106-15242 Model

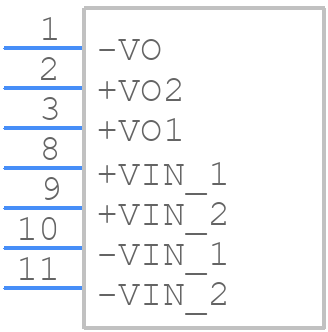

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VLA106-15242 - POWEREX PCB footprint - Other - Other - 11-SIP Module, 7 Leads
click to zoom
3D Models
VLA106-15242 - POWEREX  - 3D model - Other - 11-SIP Module, 7 Leads
click to zoom

VLA106-15242 Details

  • Manufacturer Part Number:

    VLA106-15242

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    SIP-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    ADDITIONAL 8.2 V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    12 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-XSMA-T7

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    25.2 V

  • Output Voltage-Min:

    22.8 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2.4 W

  • Trim/Adjustable Output:

    NO

VLA106-15242 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VLA106-15242 is -40°C to 150°C.
  • Proper thermal management can be achieved by providing a heat sink with a thermal resistance of 1.5°C/W or less, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the VLA106-15242 is 15V, with a maximum of 20V.
  • Yes, the VLA106-15242 can be used in a parallel configuration, but it's essential to ensure that the devices are matched and the gate drive signals are synchronized to prevent uneven current sharing.
  • To protect the VLA106-15242, use a suitable overvoltage protection circuit, such as a transient voltage suppressor (TVS) or a metal-oxide varistor (MOV), and implement overcurrent protection using a fuse or a current-sensing resistor.
