VLA106-24151 - POWEREX

Description: POWEREX - VLA106-24151 - DC-DC CONVERTER, ISO POL, 1 O/P, 1.5W, 100mA, 15V

Download VLA106-24151 Model

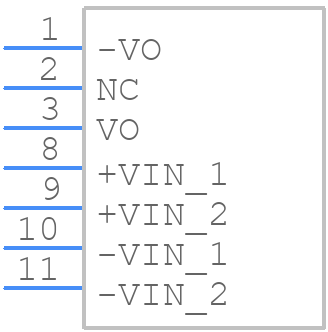

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

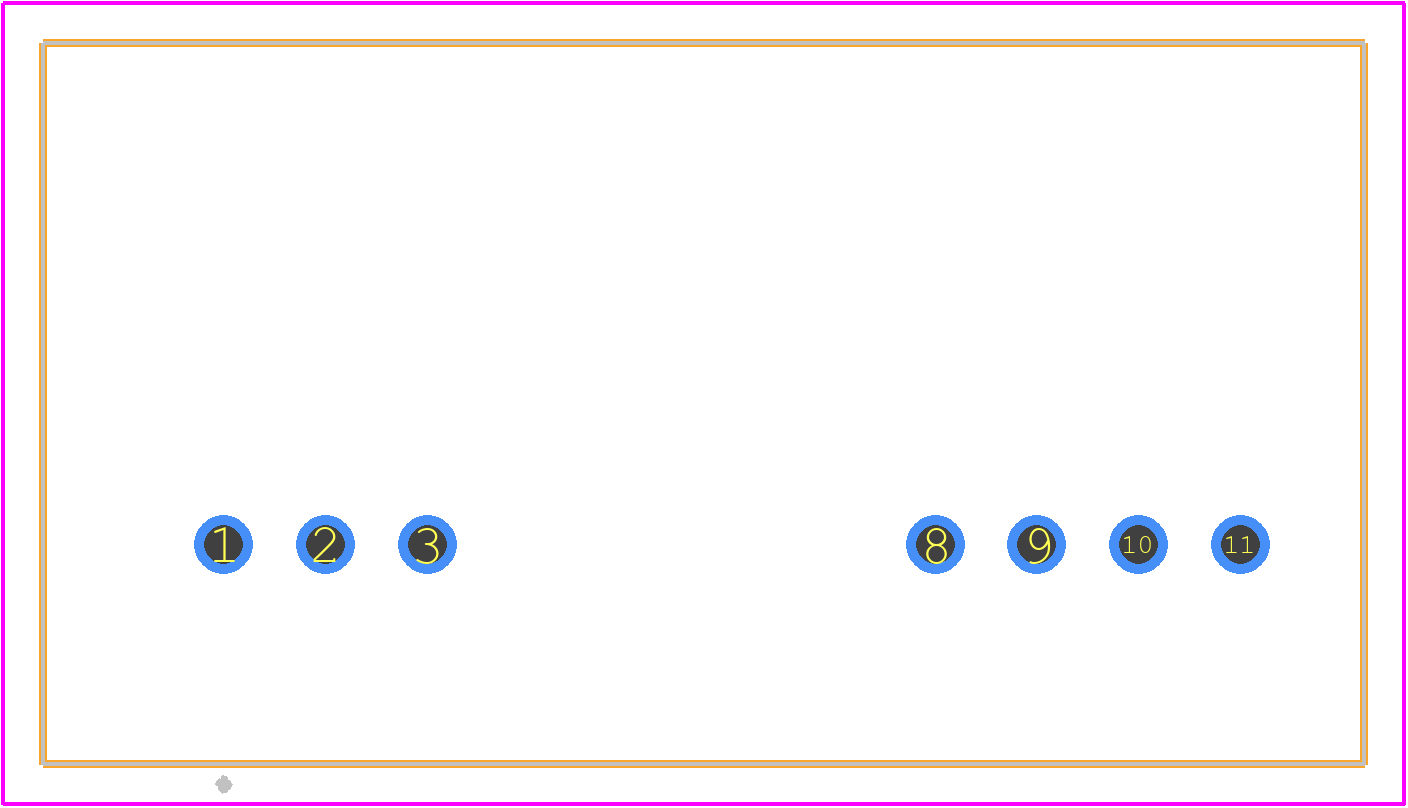

PCB Footprints
VLA106-24151 - POWEREX PCB footprint - Other - Other - VLA106-24151-1
click to zoom
3D Models
VLA106-24151 - POWEREX  - 3D model - Other - VLA106-24151-1
click to zoom

VLA106-24151 Details

  • Manufacturer Part Number:

    VLA106-24151

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T7

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1.5 W

  • Trim/Adjustable Output:

    NO
