VLA106-24242 - POWEREX

Description: DC DC CONVERTER 24V 2W

Download VLA106-24242 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

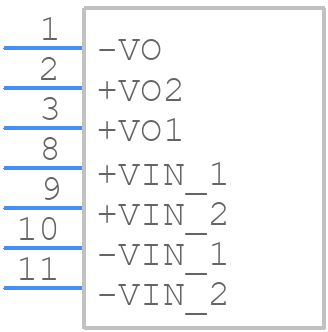

VLA106-24242 - POWEREX - PCB symbol
click to zoom
PCB Footprints

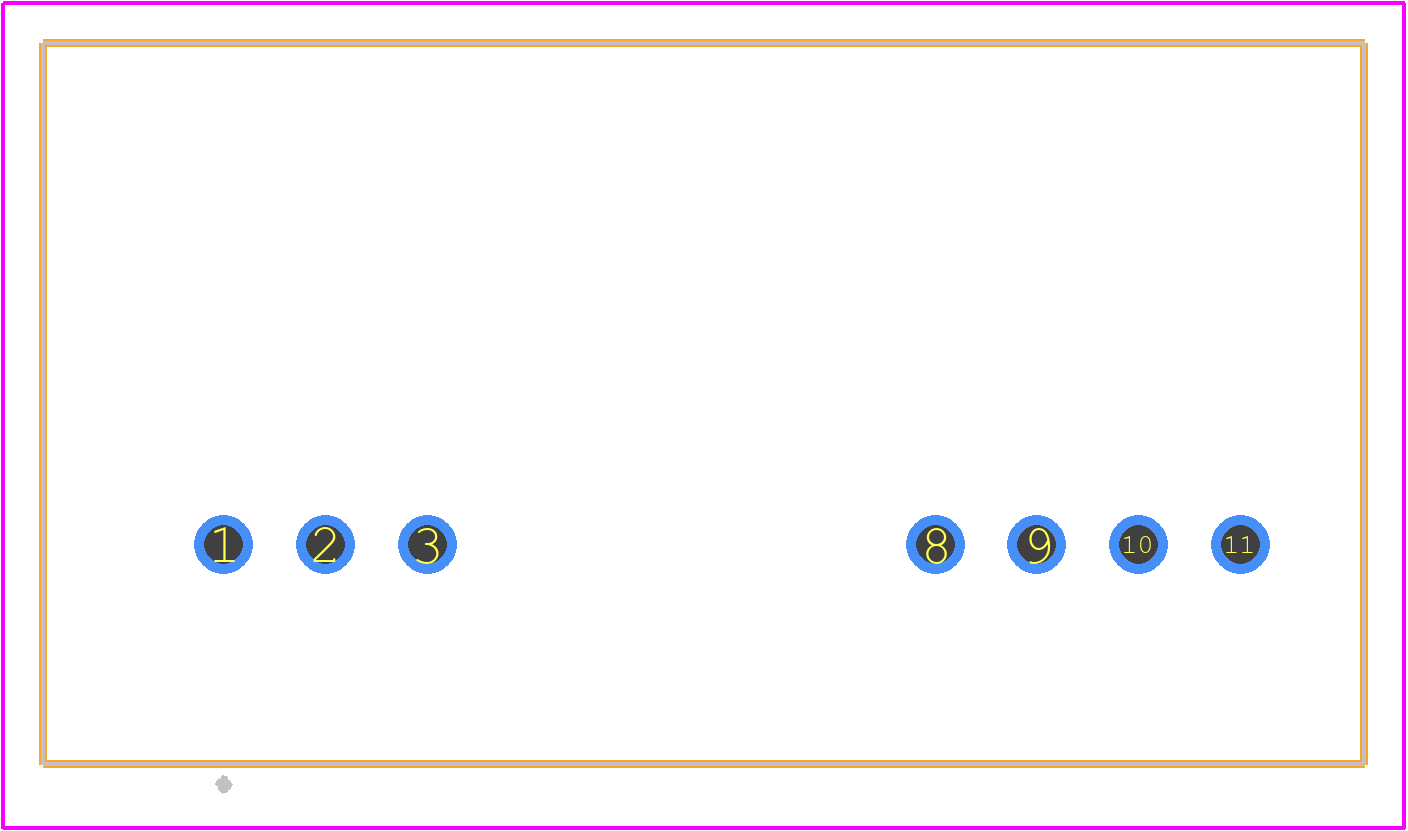

VLA106-24242 - POWEREX PCB footprint - Other - Other - VLA106-24242-1
click to zoom
3D Models
VLA106-24242 - POWEREX - 3D model - Other - VLA106-24242-1
click to zoom

VLA106-24242 Details

  • Manufacturer Part Number:

    VLA106-24242

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    SIP-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Powerex Power Semiconductors

  • YTEOL:

    6.3

  • Additional Feature:

    ADDITIONAL 8.2 V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    21.6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T7

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    25.2 V

  • Output Voltage-Min:

    22.8 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2.4 W

  • Trim/Adjustable Output:

    NO

VLA106-24242 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a large copper area for heat dissipation is recommended. Ensure a minimum of 2 oz copper thickness and a thermal relief pattern around the device.
  • Implement a proper heat sink design, ensure good airflow, and consider using a thermal interface material (TIM) to reduce thermal resistance. Monitor junction temperature and adjust the design accordingly.
  • A gate drive circuit with a voltage source, resistor, and capacitor (VRC) configuration is recommended. Ensure a minimum gate drive voltage of 15 V and a maximum of 20 V.
  • Implement overcurrent protection using a current sense resistor and a comparator. For overvoltage protection, use a voltage clamp circuit or a transient voltage suppressor (TVS) diode.
  • Use a wire bonding technique with a minimum wire diameter of 0.5 mm and a maximum bond force of 10 N. For soldering, use a solder with a melting point above 220°C and follow the recommended soldering profile.
