The recommended land pattern for the VLCF5020T-330MR62-1 can be found in the TDK Corporation's application note 'Recommended Land Pattern for Chip Inductors' (document number: CLF_ Land_Pattern_EN_2020). It provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
While the datasheet specifies an operating temperature range of -40°C to +125°C, TDK Corporation recommends derating the inductor's current rating for high-temperature applications. For temperatures above 85°C, the current rating should be reduced by 1.5% per degree Celsius to ensure reliable operation and prevent thermal runaway.
While the VLCF5020T-330MR62-1 is designed for high-frequency applications, its performance may degrade above 100 MHz due to increased core losses and parasitic effects. For frequencies above 100 MHz, TDK Corporation recommends using their high-frequency inductor series, such as the VLFC series, which are specifically designed for high-frequency applications.
TDK Corporation recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation and ensure reliable joints. For more detailed information, refer to the TDK Corporation's soldering guide (document number: Soldering_Guide_EN_2020).
The VLCF5020T-330MR62-1 is designed to handle high-current surges and pulses, but its performance may be affected by the duration and frequency of these events. For applications with high-current surges or pulses, TDK Corporation recommends using their high-reliability inductor series, such as the VLCH series, which are designed to withstand high-current stresses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VLCF5020T-330MR62-1 Overview

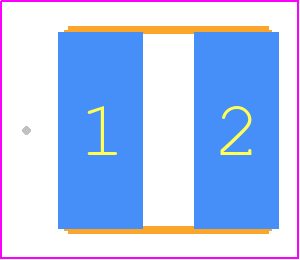

Use the download button to access the VLCF5020T-330MR62-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VLCF5,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
