VN02H - STMicroelectronics

Description: HIGH SIDE SMART POWER SOLID STATE RELAY, PENTAWATT vertical

Download VN02H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

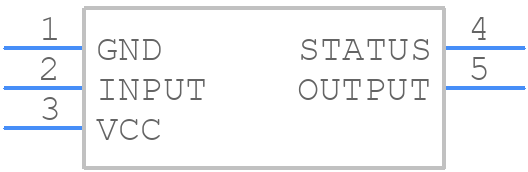

VN02H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN02H - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PENTAWATT VERTICAL
click to zoom
3D Models
VN02H - STMicroelectronics - 3D model - Transistor Outline, Vertical - PENTAWATT VERTICAL
click to zoom

VN02H Details

  • Manufacturer Part Number:

    VN02H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    VERTICAL, PENTAWATT-5

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PZFM-T5

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    3 A

  • Output Peak Current Limit-Nom:

    0.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP5,.15,.2,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    20 µs

VN02H Frequently Asked Questions (FAQs)

  • A good PCB layout for VN02H involves keeping the high-current paths short and wide, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure reliable operation in high-temperature environments, ensure good thermal dissipation by using a heat sink, and follow the recommended thermal design guidelines. Also, consider using a thermistor to monitor the temperature and adjust the VN02H's operation accordingly.
  • For EMI and EMC compliance, ensure proper PCB layout, use a shielded enclosure, and add EMI filters or chokes as needed. Also, follow the recommended layout and grounding guidelines to minimize radiated emissions.
  • To troubleshoot and debug issues with the VN02H, use a logic analyzer or oscilloscope to monitor the signals, check the power supply and voltage regulator, and verify the PCB layout and component placement. Consult the datasheet and application notes for specific guidance.
  • The recommended components for the external circuitry include a suitable voltage regulator, decoupling capacitors, and a freewheeling diode. Consult the datasheet and application notes for specific component recommendations and values.
