VN16BSP footprint, schematic symbol and 3D model by STMicroelectronics

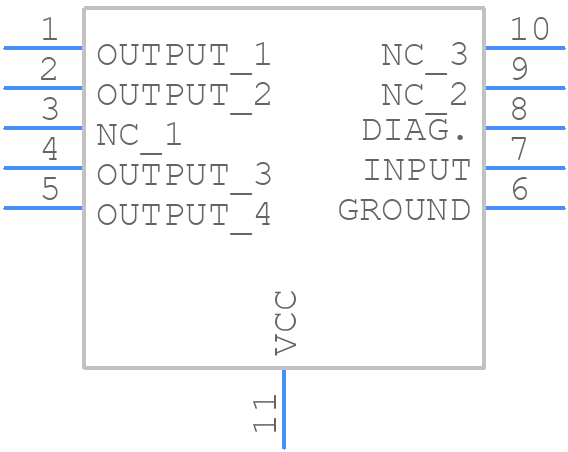

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VN16BSP
Part Number VN16BSP
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSO-10
Released Date Apr 16, 2026
Last Modified Date Apr 16, 2026 11:30 AM UTC
Pinout / Pin List Click Here (Member Only)

VN16BSP Details

Manufacturer Part Number:
VN16BSP
Brand Name:
STMicroelectronics
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
POWER, SO-10
Pin Count:
10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
OVER CURRENT; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e0
Length:
9.4 mm
Number of Functions:
1
Number of Terminals:
10
Output Current Flow Direction:
SOURCE
Output Peak Current Limit-Nom:
20 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Qualification Status:
Not Qualified
Seated Height-Max:
3.75 mm
Supply Voltage-Max:
26 V
Supply Voltage-Min:
6 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
500 µs
Turn-on Time:
500 µs
Width:
7.5 mm

VN16BSP Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN5333, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The VN16BSP can be configured for low-power mode by setting the EN pin low and using the SPI interface to configure the device's power modes. Refer to the device's programming guide for more information.
The VN16BSP is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. Consult with STMicroelectronics' technical support for more information.
Yes, the VN16BSP can operate with a 3.3V power supply, but the device's performance and functionality may be affected. Consult the datasheet and application notes for more information on power supply requirements and limitations.
STMicroelectronics provides a troubleshooting guide for the VN16BSP's SPI interface in the application note AN5334, which includes steps for debugging common issues such as clock stretching and data corruption.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VN16BSP Overview

Use the download button to access the VN16BSP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VN16B, or try a keyword search, such as Peripheral Drivers
