VN16BSP13TR footprint, schematic symbol and 3D model by STMicroelectronics

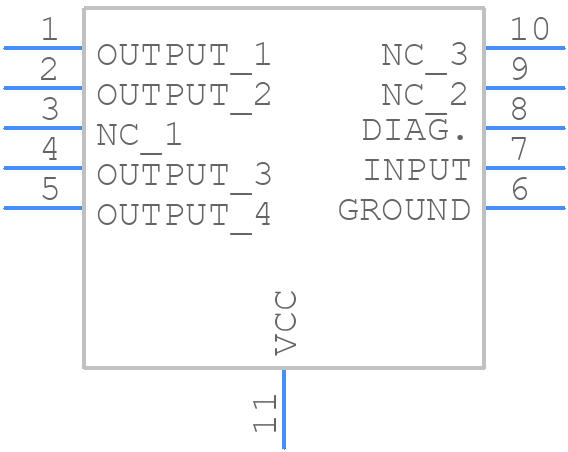

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VN16BSP13TR
Part Number VN16BSP13TR
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSO-10
Released Date Apr 16, 2026
Last Modified Date Apr 16, 2026 10:58 AM UTC
Pinout / Pin List Click Here (Member Only)

VN16BSP13TR Details

Manufacturer Part Number:
VN16BSP13TR
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
POWER, SO-10
Pin Count:
10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
OVER CURRENT; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e3
Length:
9.4 mm
Number of Functions:
1
Number of Terminals:
10
Output Current Flow Direction:
SOURCE
Output Current-Max:
20 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
SOP10,.55FL
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Qualification Status:
Not Qualified
Seated Height-Max:
3.75 mm
Supply Voltage-Max:
26 V
Supply Voltage-Min:
6 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
500 µs
Turn-on Time:
500 µs
Width:
7.5 mm
