VN5010AK-E - STMicroelectronics

Description: STMICROELECTRONICS - VN5010AK-E - POWER LOAD SW, AEC-Q100, 13V, POWERSSO24

Download VN5010AK-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

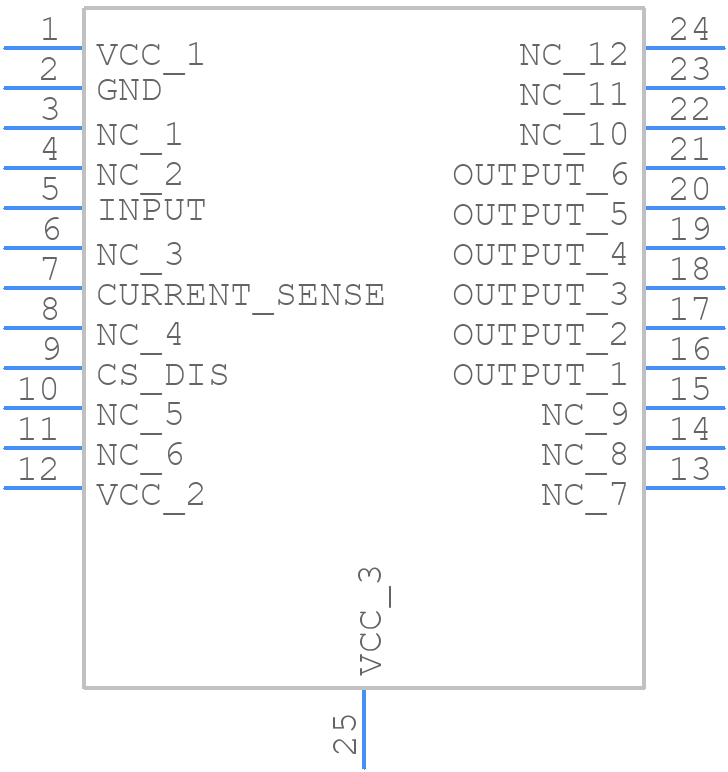

Symbol
VN5010AK-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5010AK-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24
click to zoom
3D Models
VN5010AK-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24
click to zoom

VN5010AK-E Details

  • Manufacturer Part Number:

    VN5010AK-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWERSSO-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.003 A

  • Output Peak Current Limit-Nom:

    65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    65 µs

  • Turn-on Time:

    35 µs

  • Width:

    7.5 mm

VN5010AK-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The choice of external components, such as resistors, capacitors, and inductors, depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the datasheet, and additional guidance can be found in the application note AN2861.
  • The VN5010AK-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It is recommended to consult the datasheet and application notes for specific guidance.
  • The VN5010AK-E has a built-in overcurrent protection feature, but additional external protection may be required depending on the application. STMicroelectronics provides guidance on implementing overcurrent protection in the application note AN2861.
  • The VN5010AK-E is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still required to ensure compliance. STMicroelectronics provides guidance on EMI and EMC considerations in the application note AN2861.
