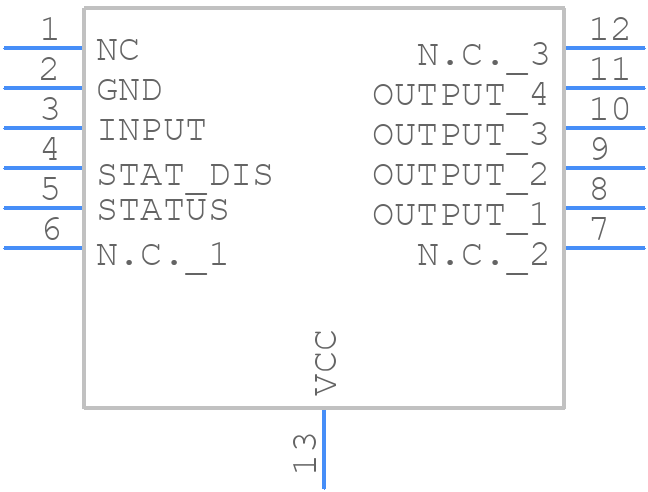

VN5E050JTR-E - STMicroelectronics

VN5E050JTR-E Details

• Manufacturer Part Number:

  VN5E050JTR-E

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  ROHS COMPLIANT, SSOP-12

• Pin Count:

  12

• Country Of Origin:

  Morocco

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.3

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G12

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  12

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSSOP

• Package Equivalence Code:

  SOP12,.25,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.62 mm

• Supply Voltage-Max:

  28 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  13 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm
