VN5E050MJ-E - STMicroelectronics

Description: Single-channel high-side driver with analog current sense for automotive applications

Download VN5E050MJ-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

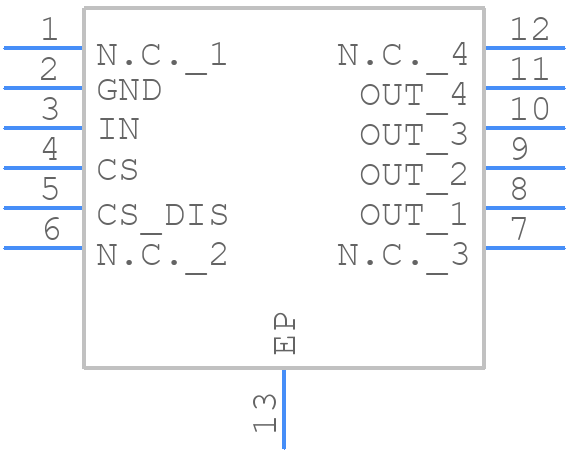

Symbol
VN5E050MJ-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E050MJ-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom
3D Models
VN5E050MJ-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom

VN5E050MJ-E Details

  • Manufacturer Part Number:

    VN5E050MJ-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    HLSSOP, SOP12,.25,32

  • Pin Count:

    12

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    27 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    40 µs

  • Turn-on Time:

    20 µs

  • Width:

    3.9 mm

VN5E050MJ-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for thermal management, decoupling, and layout considerations to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the specific application and operating conditions. A general guideline is to use capacitors with a capacitance value between 1 μF and 10 μF, with a voltage rating of at least 50 V. The datasheet provides more information on input capacitor selection, and STMicroelectronics also offers a capacitor selection tool to help with this process.
  • The maximum allowed voltage on the VIN pin is 55 V, according to the datasheet. However, it's recommended to keep the input voltage below 50 V to ensure reliable operation and prevent damage to the device.
  • The VN5E050MJ-E has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold is typically set to 55 V, but can be adjusted by using an external resistor divider network. STMicroelectronics provides more information on OVP implementation in the application note AN4899.
  • The thermal resistance of the VN5E050MJ-E package is typically around 2.5°C/W (junction-to-ambient) and 1.5°C/W (junction-to-case). This information is available in the datasheet and is important for thermal management and heat sink design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN5E050MJ-E Overview

Use the download button to access the VN5E050MJ-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5E0, or try a keyword search, such as Peripheral Drivers
