VN5E160ASOTR-E - STMicroelectronics

Description: Single channel high side driver with analog for automotive applications

Download VN5E160ASOTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

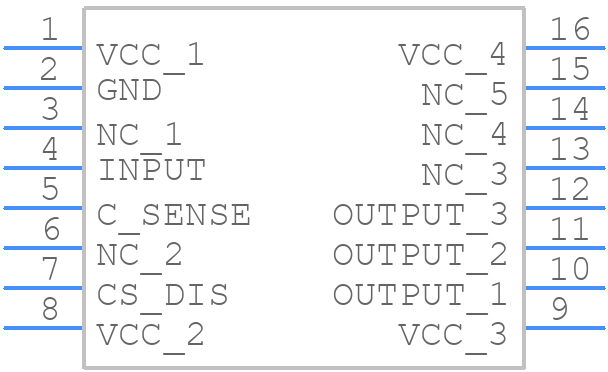

VN5E160ASOTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E160ASOTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - M25P16_SO16W
click to zoom
3D Models
VN5E160ASOTR-E - STMicroelectronics - 3D model - Small Outline Packages - M25P16_SO16W
click to zoom

VN5E160ASOTR-E Details

  • Manufacturer Part Number:

    VN5E160ASOTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SO-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    1 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.5 mm

VN5E160ASOTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the specific application and operating conditions. A general guideline is to use capacitors with a value between 1uF to 10uF, with a voltage rating of at least 50V. The datasheet provides more information on input capacitor selection, and STMicroelectronics also offers a capacitor selection tool on their website.
  • The maximum allowed voltage on the enable pin (EN) is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • To ensure reliable operation in high-temperature environments, follow the recommended thermal management guidelines in the datasheet and application notes. This includes using a heat sink, ensuring good airflow, and selecting components with high temperature ratings.
  • The minimum input voltage required for proper operation is 5.5V, as specified in the datasheet. Operating the device below this voltage may result in reduced performance or malfunction.
