VN5R003HTR-E - STMicroelectronics

Description: 3 mΩ reverse battery protection switch

Download VN5R003HTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

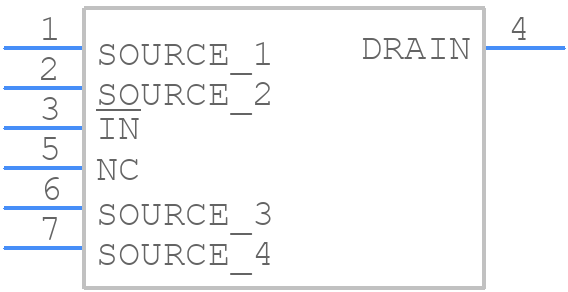

VN5R003HTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5R003HTR-E - STMicroelectronics PCB footprint - Other - Other - VN5R003HTR-E-5
click to zoom
3D Models
VN5R003HTR-E - STMicroelectronics - 3D model - Other - VN5R003HTR-E-5
click to zoom

VN5R003HTR-E Details

  • Manufacturer Part Number:

    VN5R003HTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VN5R003HTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable, keep the device away from high-frequency sources, and follow proper PCB layout and grounding practices.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
  • Yes, the VN5R003HTR-E is rated for operation up to 150°C, but derating is required above 125°C. Consult the datasheet for specific derating curves.
  • Check the input voltage, ensure proper pin connections, and verify that the enable pin is properly configured. Consult the datasheet for specific troubleshooting steps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN5R003HTR-E Overview

Use the download button to access the VN5R003HTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5R0, or try a keyword search, such as Peripheral Drivers
