VN610SP13TR - STMicroelectronics

Description: Single channel high-side solid state relay

Download VN610SP13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

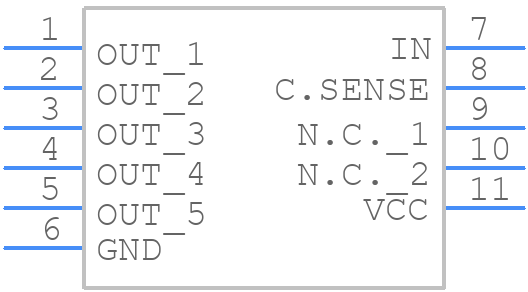

VN610SP13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN610SP13TR - STMicroelectronics PCB footprint - Other - Other - PowerSO-10
click to zoom

VN610SP13TR Details

  • Manufacturer Part Number:

    VN610SP13TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VN610SP13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • STMicroelectronics provides a component selection guide in the application note AN4898, which includes recommendations for capacitors, resistors, and inductors based on the specific application and operating conditions.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 16V to ensure reliable operation and prevent damage to the device.
  • The VN610SP13TR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a suitable resistor and capacitor. The application note AN4900 provides a detailed example of how to implement overcurrent protection.
  • Although the datasheet specifies an operating temperature range of -40°C to 150°C, it's recommended to operate the device within a range of -20°C to 125°C for optimal performance and reliability.
