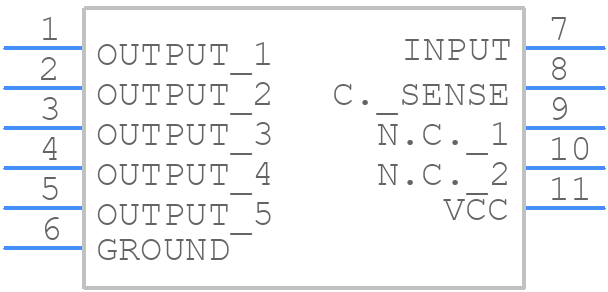

VN610SPTR-E - STMicroelectronics

VN610SPTR-E Details

• Manufacturer Part Number:

  VN610SPTR-E

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, POWER, SO-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G10

• JESD-609 Code:

  e3

• Length:

  9.4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  10

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  45 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP10,.55FL

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  250

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.75 mm

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  13 V

• Surface Mount:

  YES

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
