VN7000AYTR - STMicroelectronics

Description: High-side driver with MultiSense analog feedback for automotive applications

Download VN7000AYTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

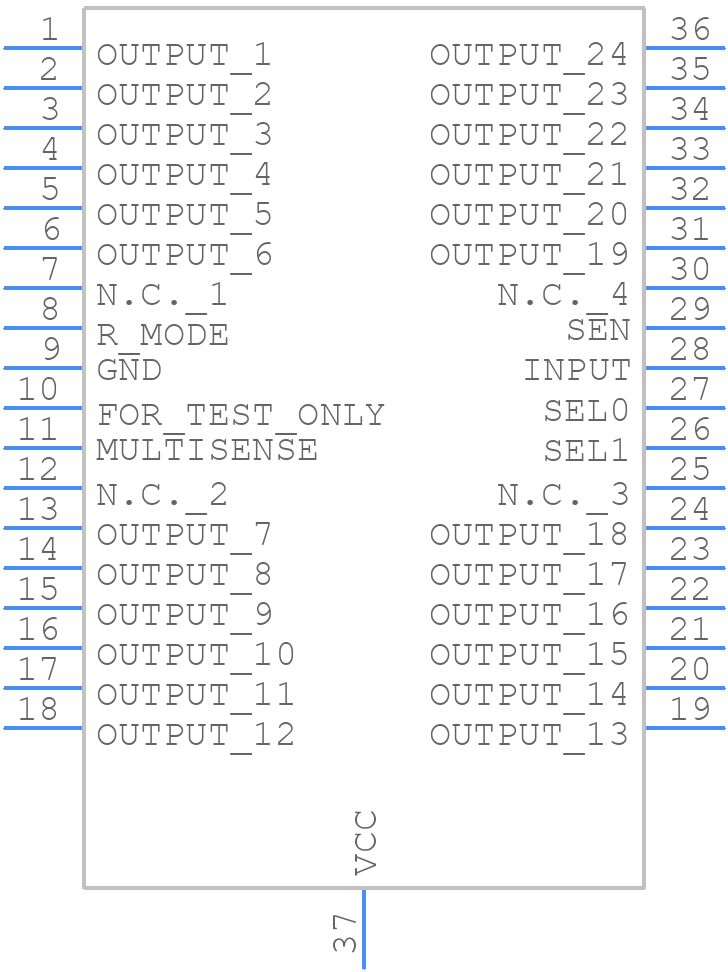

VN7000AYTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN7000AYTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 (exposed pad)
click to zoom
3D Models
VN7000AYTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 (exposed pad)
click to zoom

VN7000AYTR Details

  • Manufacturer Part Number:

    VN7000AYTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VN7000AYTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Implement a thermal management strategy, such as heat sinks or fans, to keep the junction temperature below 150°C. Also, ensure proper PCB design and layout to minimize thermal resistance.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation and prevent damage to the device.
  • Implement TVS (Transient Voltage Suppressor) diodes or other protection devices on the input lines to prevent EOS damage. Also, ensure proper PCB design and layout to minimize parasitic inductance and capacitance.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the device's input pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7000AYTR Overview

Use the download button to access the VN7000AYTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN700, or try a keyword search, such as Peripheral Drivers
