VN7004CHTR - STMicroelectronics

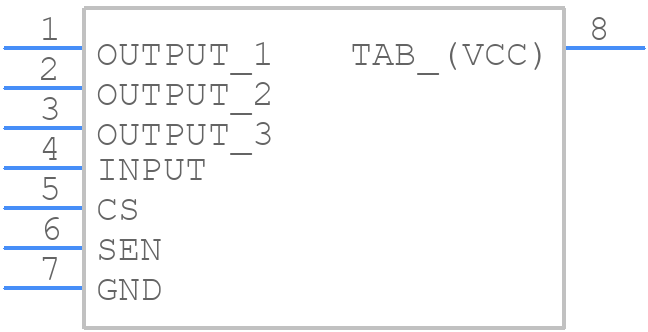

VN7004CHTR Details

• Manufacturer Part Number:

  VN7004CHTR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP, SMSIP7H,.39,34TB

• Manufacturer Package Code:

  HPAK + 1 (OCTAPAK)

• Reach Compliance Code:

  Not Compliant

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PSSO-G7

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  135 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SMSIP7H,.39,34TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.55 mm

• Supply Current-Max:

  6.5 mA

• Supply Voltage-Max:

  28 V

• Supply Voltage-Min:

  4 V

• Supply Voltage-Nom:

  13 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.85 mm

• Terminal Position:

  SINGLE

• Turn-off Time:

  100 µs

• Turn-on Time:

  120 µs

• Width:

  6.1 mm
