VN7008AJTR - STMicroelectronics

Description: High-side driver with CurrentSense analog feedback for automotive applications

Download VN7008AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

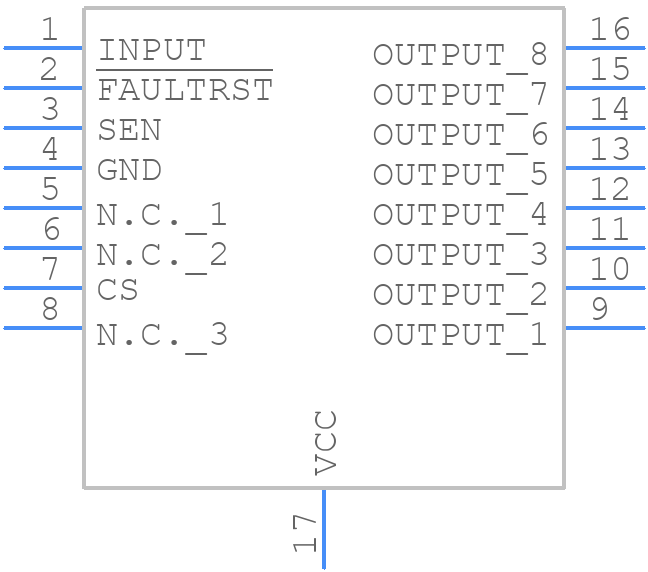

VN7008AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN7008AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSO-17
click to zoom
3D Models
VN7008AJTR - STMicroelectronics - 3D model - Small Outline Packages - SSO-17
click to zoom

VN7008AJTR Details

  • Manufacturer Part Number:

    VN7008AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PowerSSO 16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VN7008AJTR Frequently Asked Questions (FAQs)

  • The VN7008AJTR can operate in a temperature range of -40°C to 150°C.
  • To ensure EMC, follow proper PCB design guidelines, use a shielded cable, and consider adding a common-mode choke and/or a ferrite bead to the power supply lines.
  • Follow STMicroelectronics' recommended layout and routing guidelines, keeping the high-current paths short and wide, and using a solid ground plane to minimize electromagnetic interference (EMI).
  • Use a voltage regulator to limit the input voltage, and consider adding overcurrent protection devices such as fuses or PTC thermistors to prevent damage from excessive current.
  • Use a 10-22 μF ceramic capacitor in parallel with a 1-10 μF electrolytic capacitor, placed as close as possible to the VN7008AJTR's power pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7008AJTR Overview

Use the download button to access the VN7008AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN700, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
