VN7040AS-E - STMicroelectronics

Description: STMICROELECTRONICS - VN7040AS-E - MOSFET DRIVER, HIGH SIDE, SOIC-8

Download VN7040AS-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

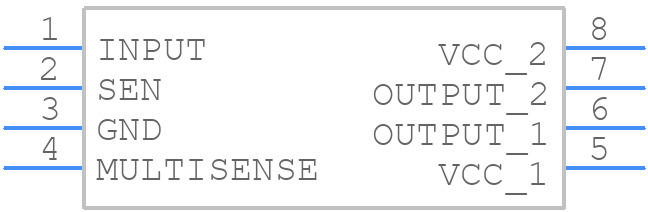

VN7040AS-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN7040AS-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VN7040AS-E
click to zoom
3D Models
VN7040AS-E - STMicroelectronics - 3D model - Small Outline Packages - VN7040AS-E
click to zoom

VN7040AS-E Details

  • Manufacturer Part Number:

    VN7040AS-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VN7040AS-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the datasheet, and additional guidance can be found in the application note AN5323.
  • The VN7040AS-E has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to implement proper thermal management, including heat sinking, thermal interface materials, and airflow management. STMicroelectronics provides thermal management guidelines in the datasheet and application note AN5323.
  • STMicroelectronics provides troubleshooting guidelines in the datasheet and application note AN5323, including procedures for identifying and resolving common issues such as overcurrent or overvoltage protection, and fault detection and diagnosis.
  • The VN7040AS-E is designed to meet electromagnetic compatibility (EMC) and electromagnetic interference (EMI) standards. To ensure compliance, it is essential to follow the PCB layout guidelines, use proper shielding and filtering, and implement EMI mitigation techniques as described in the application note AN5323.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7040AS-E Overview

Use the download button to access the VN7040AS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN704, or try a keyword search, such as Peripheral Drivers
