Part Image

VN7140AJTR-E - STMicroelectronics

Description: IC DVR HIGH-SIDE 1CH POWERSSO-16

Download VN7140AJTR-E Model

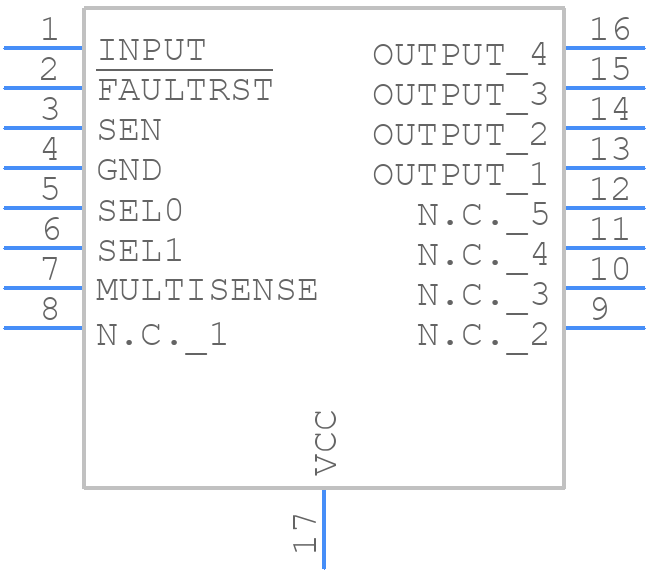

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VN7140AJTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO 16.
click to zoom
3D Models
VN7140AJTR-E - STMicroelectronics  - 3D model - Small Outline Packages - PowerSSO 16.
click to zoom

VN7140AJTR-E Details

  • Manufacturer Part Number:

    VN7140AJTR-E

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VN7140AJTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable, keep the device away from high-frequency sources, and follow proper PCB layout and grounding techniques.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
  • Yes, the VN7140AJTR-E is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C to ensure reliability.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals, and check the power supply voltage and decoupling capacitors for any issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7140AJTR-E Overview

Use the download button to access the VN7140AJTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN714, or try a keyword search, such as Peripheral Drivers
