VN750SMP-E - STMicroelectronics

Description: Power Switch ICs - Power Distribution High Side Driver 55mOhm 6A 26V

Download VN750SMP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

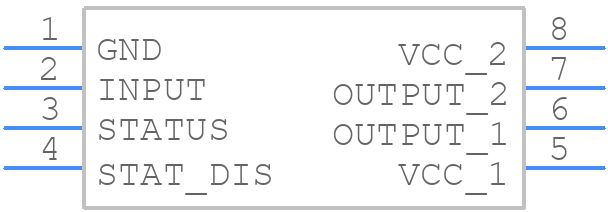

Symbol
VN750SMP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN750SMP-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 1.75mm thickness
click to zoom

VN750SMP-E Details

  • Manufacturer Part Number:

    VN750SMP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    2 A

  • Output Peak Current Limit-Nom:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    40 µs

  • Width:

    3.9 mm

VN750SMP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5333, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • The VN750SMP-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the appropriate registers through the SPI interface. Refer to the device's programming guide for more information.
  • The VN750SMP-E is rated for operation from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating.
  • Yes, the VN750SMP-E is designed to withstand high-vibration environments. However, it's crucial to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. STMicroelectronics recommends using a suitable vibration-resistant mounting method, such as a screw or clip.
  • To troubleshoot SPI communication issues, check the clock frequency, polarity, and phase settings. Ensure that the master and slave devices are properly configured and that the SPI bus is not overloaded. Use a logic analyzer or oscilloscope to verify the signal integrity and timing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN750SMP-E Overview

Use the download button to access the VN750SMP-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN750, or try a keyword search, such as Peripheral Drivers
