VN820SP-E - STMicroelectronics

Description: STMICROELECTRONICS - VN820SP-E - POWER LOAD SW, AEC-Q100, 13V, POWERSO-10

Download VN820SP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

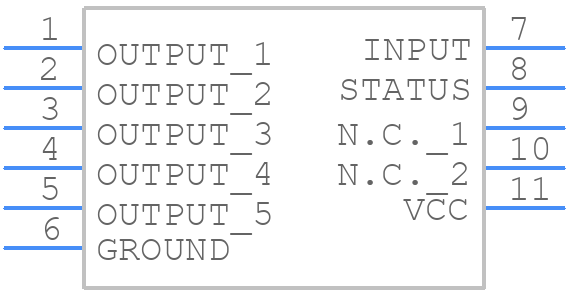

Symbol
VN820SP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN820SP-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10
click to zoom

VN820SP-E Details

  • Manufacturer Part Number:

    VN820SP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    9 A

  • Output Peak Current Limit-Nom:

    13 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VN820SP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the high-current paths short and wide. Additionally, it's recommended to use a common mode choke and a shielded cable to minimize EMI.
  • STMicroelectronics provides a configuration tool that allows you to customize the VN820SP-E's settings for your specific application. You can also refer to the application notes and user manuals provided by STMicroelectronics for guidance.
  • The VN820SP-E is rated for operation from -40°C to 125°C, but it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • STMicroelectronics provides a troubleshooting guide that outlines common issues and their solutions. You can also use diagnostic tools such as oscilloscopes and logic analyzers to debug the issue. Additionally, you can contact STMicroelectronics' technical support for assistance.
  • Yes, the VN820SP-E is designed to meet the safety requirements of automotive systems and is compliant with relevant safety standards such as ISO 26262. However, it's essential to follow the safety guidelines and recommendations provided by STMicroelectronics and to perform thorough testing and validation of your system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN820SP-E Overview

Use the download button to access the VN820SP-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN820, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
