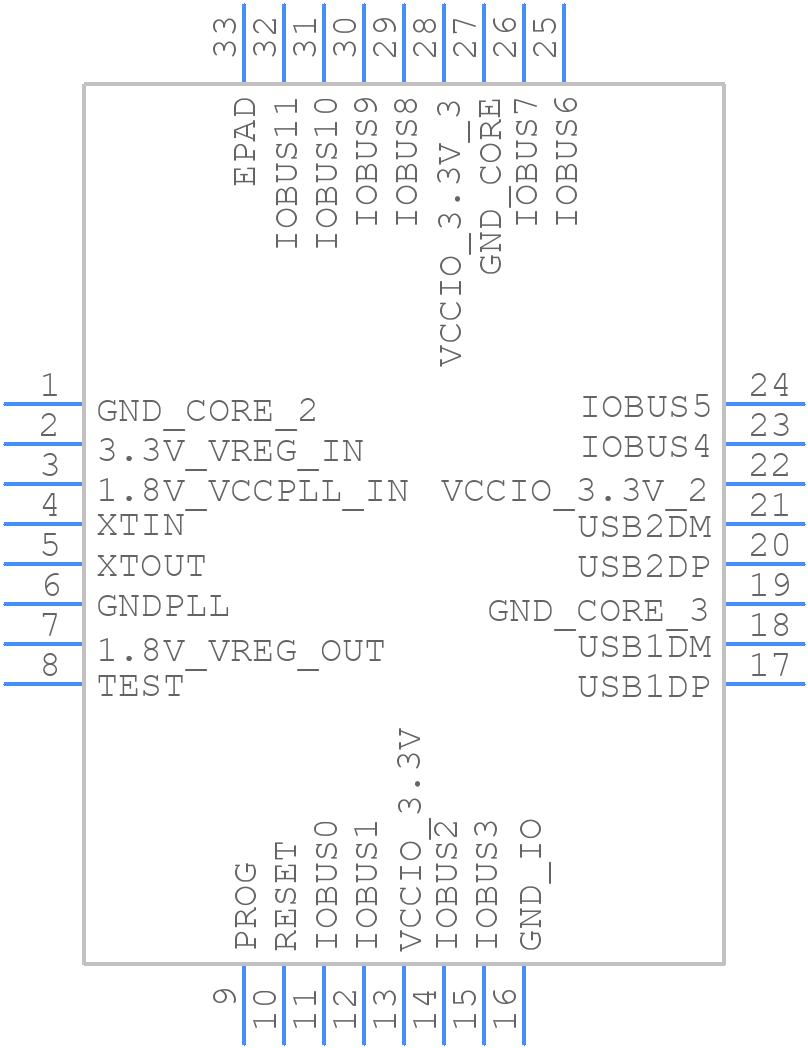

VNC2-32Q1B - FTDI Chip

VNC2-32Q1B Details

• Manufacturer Part Number:

  VNC2-32Q1B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  QFN-32

• Pin Count:

  32

• HTS Code:

  8542.31.00.30

• Manufacturer:

  FTDI Chip

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES AT 3.3 V I/O SUPPLY

• Clock Frequency-Max:

  6 MHz

• Data Transfer Rate-Max:

  1.5 MBps

• JESD-30 Code:

  S-XQCC-N32

• Length:

  7 mm

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.27SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.98 V

• Supply Voltage-Min:

  1.62 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
