VND5025AKTR-E - STMicroelectronics

Description: Double channel high side driver with analog current sense for automotive applications

Download VND5025AKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

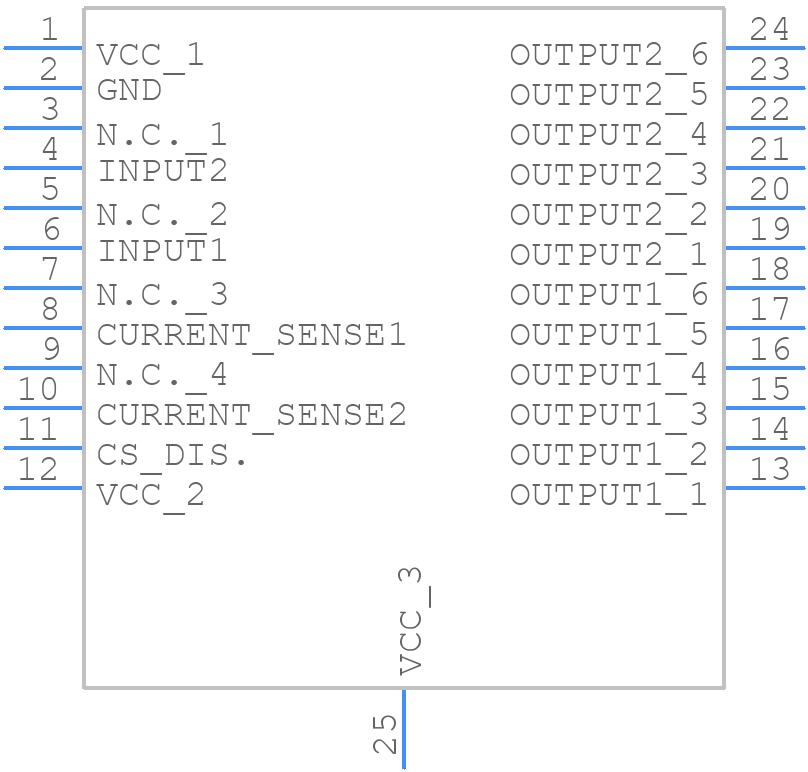

Symbol
VND5025AKTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5025AKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24
click to zoom
3D Models
VND5025AKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24
click to zoom

VND5025AKTR-E Details

  • Manufacturer Part Number:

    VND5025AKTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND5025AKTR-E Frequently Asked Questions (FAQs)

  • The maximum current rating of the VND5025AKTR-E is 5A, but it's recommended to derate the current to 3.5A for reliable operation.
  • To ensure proper cooling, make sure to attach a heat sink to the device and ensure good airflow around the component. The thermal resistance of the device is 2.5°C/W, so a heat sink with a thermal resistance of 5°C/W or lower is recommended.
  • For optimal performance, it's recommended to use a 4-layer PCB with a solid ground plane and a separate power plane. Keep the high-current paths short and wide, and use vias to connect the power planes to the device pins.
  • To protect the device from overvoltage and overcurrent, use a TVS diode or a zener diode to clamp the voltage, and a fuse or a PTC resettable fuse to limit the current. Additionally, consider using a current sense resistor to monitor the current and shut down the device if it exceeds the maximum rating.
  • The recommended operating voltage range for the VND5025AKTR-E is 5.5V to 28V, but it can operate up to 40V with reduced performance. It's recommended to operate the device within the recommended range for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5025AKTR-E Overview

Use the download button to access the VND5025AKTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND50, or try a keyword search, such as Peripheral Drivers
