VND5050JTR-E - STMicroelectronics

Description: STMICROELECTRONICS - VND5050JTR-E - DRIVER, HIGH SIDE, 18A, SOIC

Download VND5050JTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

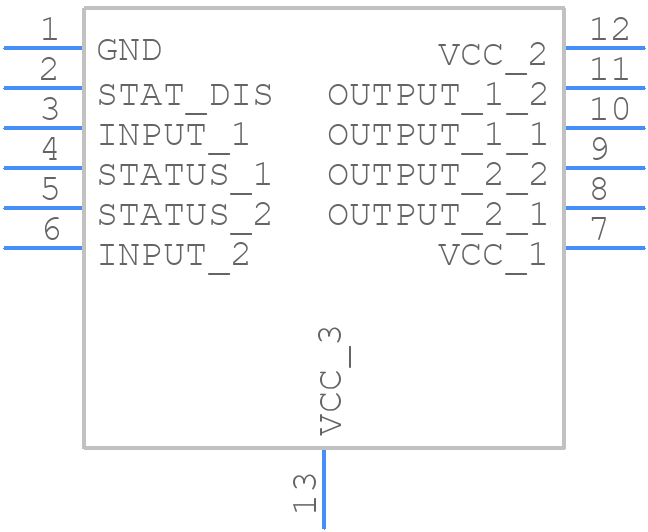

VND5050JTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5050JTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12_
click to zoom
3D Models
VND5050JTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12_
click to zoom

VND5050JTR-E Details

  • Manufacturer Part Number:

    VND5050JTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-12

  • Pin Count:

    12

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VND5050JTR-E Frequently Asked Questions (FAQs)

  • The maximum current rating of the VND5050JTR-E is 50A, but it's recommended to derate the current to ensure reliable operation and to prevent overheating.
  • The sense resistor value depends on the application's current sensing requirements. A general rule of thumb is to choose a sense resistor value that provides a voltage drop of 50-100mV at the maximum expected current. Consult the datasheet and application notes for more information.
  • The EN pin is used to enable or disable the high-side switch. When the EN pin is high, the switch is enabled, and when it's low, the switch is disabled. This pin can be used to implement undervoltage lockout, overcurrent protection, or other safety features.
  • Implement overvoltage protection using a voltage supervisor or a Zener diode, and overcurrent protection using a sense resistor and a comparator or a dedicated overcurrent protection IC. Consult the datasheet and application notes for more information.
  • Follow the recommended PCB layout guidelines in the datasheet, including keeping the high-current paths short and wide, and using thermal vias to dissipate heat. Ensure good thermal management by providing adequate heat sinking and airflow.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5050JTR-E Overview

Use the download button to access the VND5050JTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND50, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics
