VND5E012MY-E footprint, schematic symbol and 3D model by STMicroelectronics

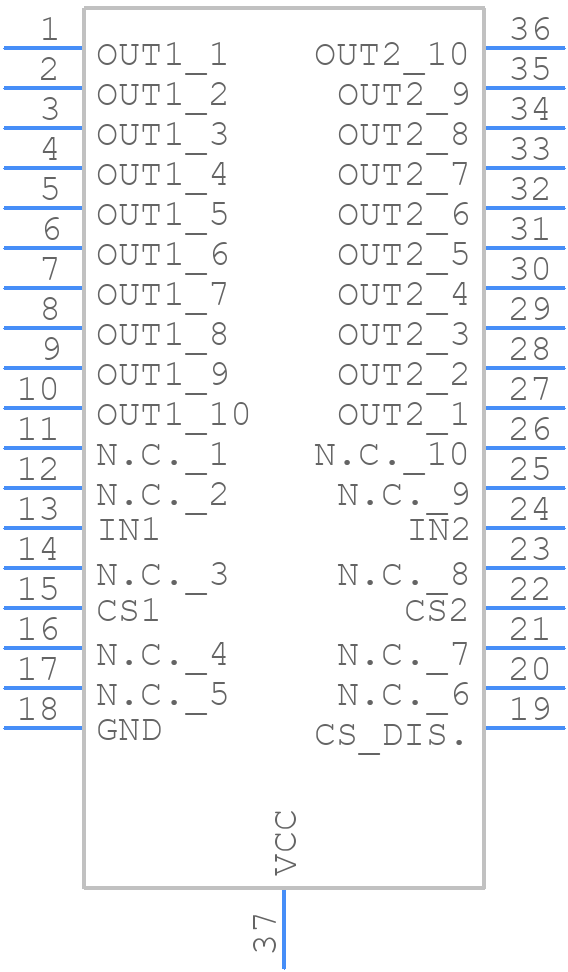

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E012MY-E
Part Number VND5E012MY-E
Manufacturer STMicroelectronics
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-36...
Released Date Apr 17, 2026
Last Modified Date Apr 17, 2026 12:03 PM UTC
Pinout / Pin List Click Here (Member Only)

VND5E012MY-E Details

Manufacturer Part Number:
VND5E012MY-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SSOP
Package Description:
ROHS COMPLIANT, SSOP-36
Pin Count:
36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
7.15
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
2
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
74 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
2.47 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm

VND5E012MY-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the ST eDesign Suite, which helps designers to select and simulate the optimal external components for their specific application.
The VND5E012MY-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. It's recommended to consult the datasheet and application notes for more information.
STMicroelectronics provides guidelines for EMC design and testing in the application note AN4846. Additionally, designers should follow good EMC design practices, such as using shielding, filtering, and proper grounding, to ensure compliance with relevant EMC standards.
The typical start-up time for the VND5E012MY-E is around 1-2 ms, but this may vary depending on the specific application and configuration. Designers should consult the datasheet and application notes for more information on start-up time and sequencing.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E012MY-E Overview

Use the download button to access the VND5E012MY-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers
