VND5E012MYTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for automotive applications

Download VND5E012MYTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

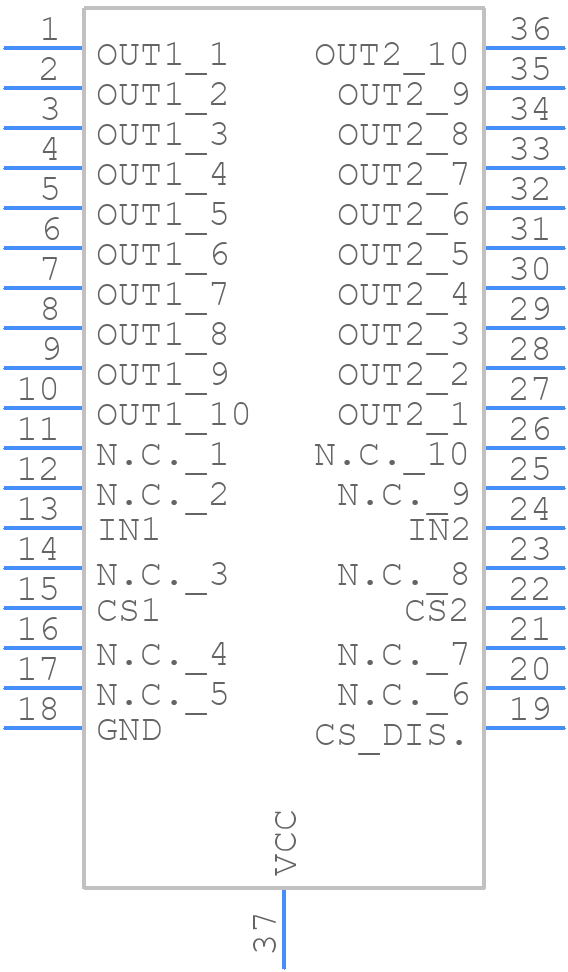

VND5E012MYTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E012MYTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PWSSO 36_2022
click to zoom
3D Models
VND5E012MYTR-E - STMicroelectronics - 3D model - Small Outline Packages - PWSSO 36_2022
click to zoom

VND5E012MYTR-E Details

  • Manufacturer Part Number:

    VND5E012MYTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    74 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND5E012MYTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Consult the application note AN4979 for more detailed guidance.
  • The VND5E012MYTR-E is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and thermal management. Consult the datasheet and application notes for thermal derating guidelines.
  • Yes, the VND5E012MYTR-E is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to meet specific industry standards and regulations.
  • Consult the troubleshooting guide in the application note AN4979, which provides a step-by-step approach to identifying and resolving common issues with the VND5E012MYTR-E. Additionally, STMicroelectronics provides technical support and resources to help diagnose and resolve issues.
