VND5E025AY-E footprint, schematic symbol and 3D model by STMicroelectronics

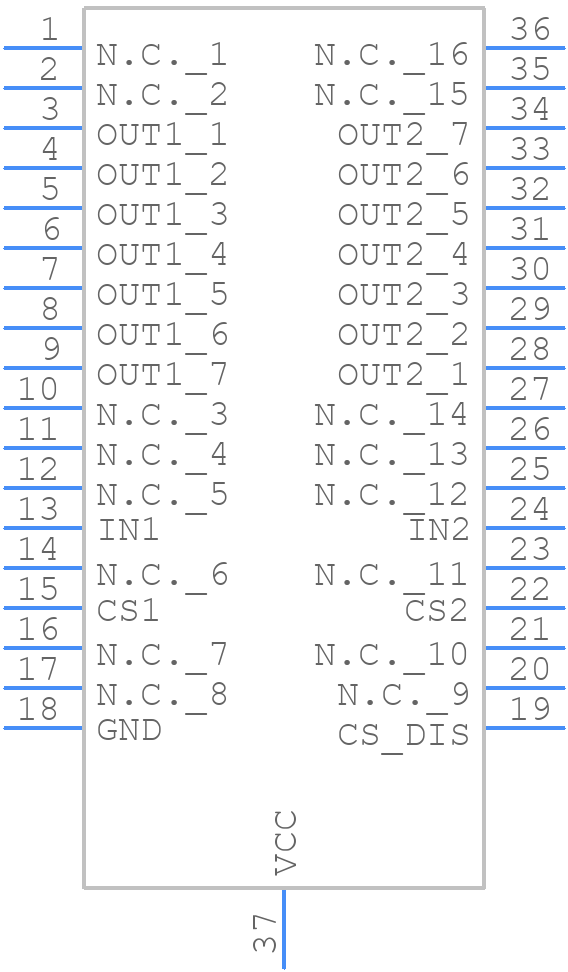

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E025AY-E
Part Number VND5E025AY-E
Manufacturer STMicroelectronics
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PWSSO 36-1
Released Date Apr 17, 2026
Last Modified Date Apr 17, 2026 11:51 AM UTC
Pinout / Pin List Click Here (Member Only)

VND5E025AY-E Details

Manufacturer Part Number:
VND5E025AY-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PowerSSO-36
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
7.32
Built-in Protections:
SHORT CIRCUIT; OVERLOAD; TRANSIENT
Driver Number of Bits:
2
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Terminals:
36
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-SOURCE
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
47 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.45 mm
Supply Current-Max:
6.5 mA
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Turn-off Time:
20 µs
Turn-on Time:
20 µs
Width:
7.5 mm

VND5E025AY-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the STMicroelectronics Component Selector, to help engineers select the most suitable components for their specific application.
The VND5E025AY-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It is recommended to consult the datasheet and application notes for more information.
STMicroelectronics provides a troubleshooting guide in the application note AN4846, which covers common issues and their solutions. Additionally, engineers can consult the datasheet and contact STMicroelectronics' technical support for further assistance.
Yes, the VND5E025AY-E is compatible with lead-free soldering processes, and STMicroelectronics provides guidelines for lead-free soldering in the application note AN4846.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E025AY-E Overview

Use the download button to access the VND5E025AY-E schematic symbol and PCB footprint.
