VND5E025BK-E footprint, schematic symbol and 3D model by STMicroelectronics

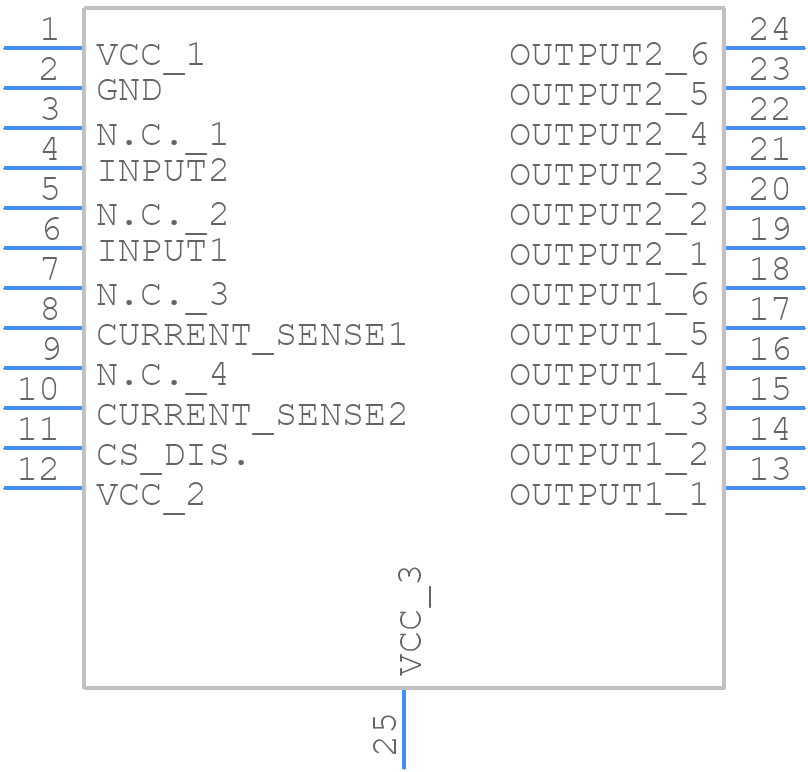

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E025BK-E
Part Number VND5E025BK-E
Manufacturer STMicroelectronics
Pin Count 25
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-24_
Released Date Apr 17, 2026
Last Modified Date Apr 17, 2026 11:57 AM UTC
Pinout / Pin List Click Here (Member Only)

VND5E025BK-E Details

Manufacturer Part Number:
VND5E025BK-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SSOP
Package Description:
ROHS COMPLIANT, SSOP-24
Pin Count:
24
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
7.15
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G24
Length:
10.3 mm
Number of Functions:
1
Number of Terminals:
24
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
60 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
2.47 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
7.5 mm

VND5E025BK-E Frequently Asked Questions (FAQs)

The maximum operating temperature range for the VND5E025BK-E is -40°C to 150°C.
To ensure reliability, it's recommended to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power dissipation at high temperatures.
STMicroelectronics provides a recommended PCB layout and thermal management guide in the application note AN4889, which should be followed to ensure optimal performance and reliability.
Yes, the VND5E025BK-E is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it's essential to follow the recommended operating conditions and ensure compliance with relevant automotive standards.
STMicroelectronics provides a troubleshooting guide in the application note AN4889, which covers common issues and their solutions. Additionally, it's recommended to consult the device's datasheet and contact STMicroelectronics' technical support if necessary.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E025BK-E Overview

Use the download button to access the VND5E025BK-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers
