VND5E025BKTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for automotive applications

Download VND5E025BKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

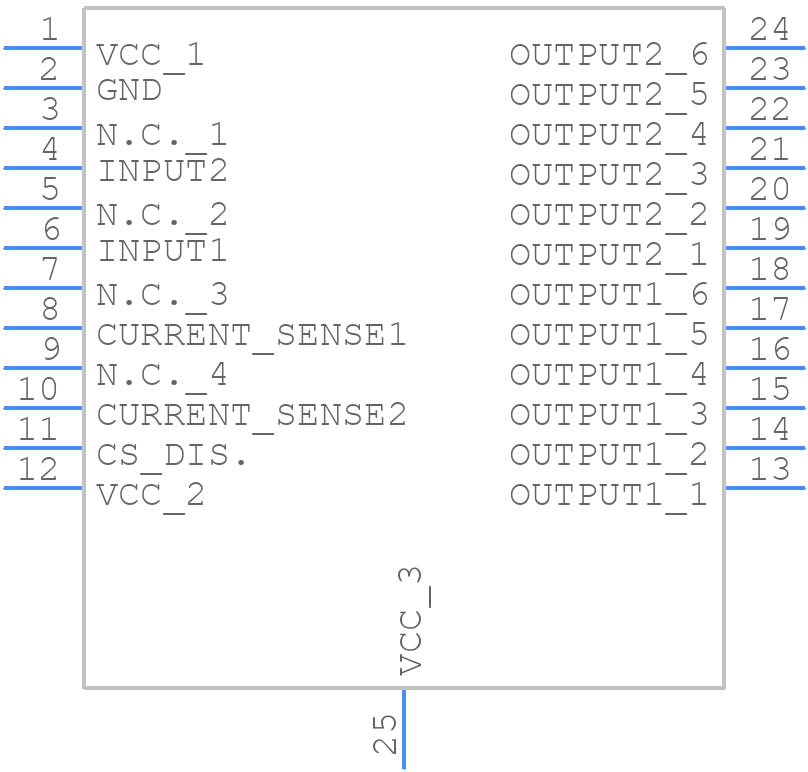

Symbol
VND5E025BKTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E025BKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 1
click to zoom
3D Models
VND5E025BKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 1
click to zoom

VND5E025BKTR-E Details

  • Manufacturer Part Number:

    VND5E025BKTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    60 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

VND5E025BKTR-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND5E025BKTR-E involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it is essential to follow the recommended operating conditions, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The VND5E025BKTR-E has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
  • Yes, the VND5E025BKTR-E is designed to withstand vibrations up to 10g. However, it is essential to ensure that the device is properly secured to the PCB using a suitable mounting method, such as a screw or adhesive, to prevent damage or detachment during vibration.
  • To troubleshoot issues with the VND5E025BKTR-E, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input and output signals using an oscilloscope, and verify that the device is properly configured and connected. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5E025BKTR-E Overview

Use the download button to access the VND5E025BKTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers
