VND5E050ACJTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for automotive applications

Download VND5E050ACJTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

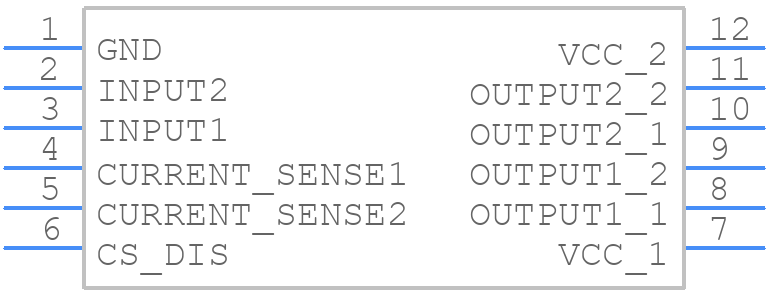

VND5E050ACJTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E050ACJTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12
click to zoom
3D Models
VND5E050ACJTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12
click to zoom

VND5E050ACJTR-E Details

  • Manufacturer Part Number:

    VND5E050ACJTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PowerSSO-12

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    27 A

  • Output Peak Current Limit-Nom:

    7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.62 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    20 µs

  • Width:

    3.9 mm

VND5E050ACJTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • Follow the recommended soldering and reflow profile guidelines provided in the STMicroelectronics soldering guide, which includes temperature and time profiles to ensure reliable assembly and minimize defects.
  • The VND5E050ACJTR-E has a thermal pad that must be connected to a thermal plane on the PCB to ensure effective heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, ensure good airflow and avoid blocking airflow around the device.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4841, which includes steps to identify and resolve common issues such as overcurrent, overvoltage, and overheating. Additionally, consult the device's datasheet and application notes for specific guidance.
  • The VND5E050ACJTR-E has built-in ESD protection, but it is still important to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling and assembly.
