VND5E050AK-E - STMicroelectronics

Description: Double channel high side driver with analog current sense for automotive applications

Download VND5E050AK-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

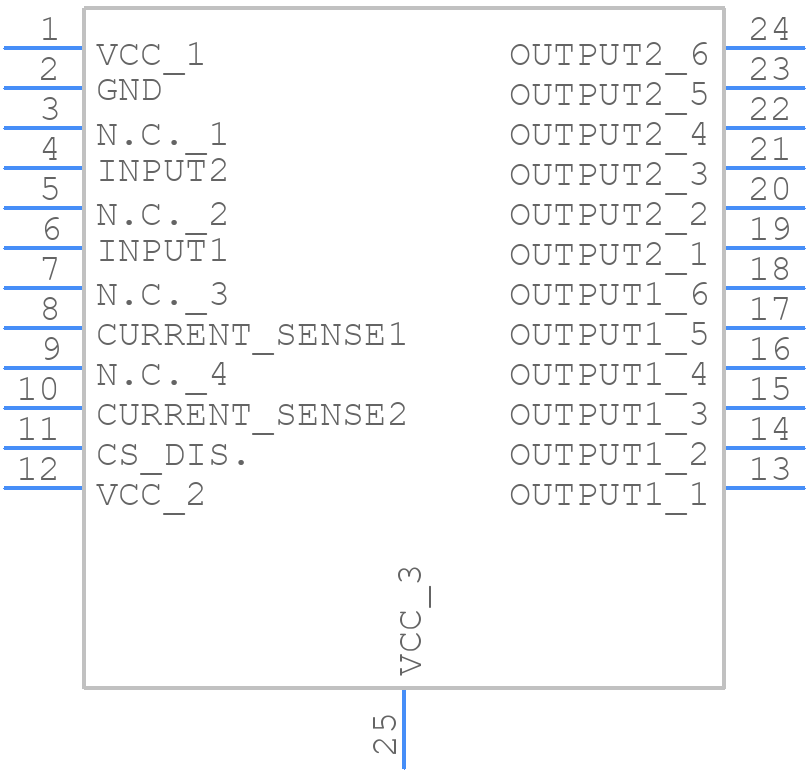

Symbol
VND5E050AK-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E050AK-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 package
click to zoom
3D Models
VND5E050AK-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 package
click to zoom

VND5E050AK-E Details

  • Manufacturer Part Number:

    VND5E050AK-E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    20 µs

  • Width:

    7.5 mm

VND5E050AK-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The sense resistor value depends on the maximum current and voltage of your application. STMicroelectronics provides a calculation formula in the datasheet to determine the sense resistor value. Additionally, you can use online calculators or consult with an application engineer for assistance.
  • The maximum junction temperature of the VND5E050AK-E is 150°C. However, it's recommended to operate the device within a safe operating area to ensure reliability and prevent thermal runaway.
  • While the VND5E050AK-E can operate up to 150°C, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4846, which includes steps to identify and resolve common issues. Additionally, you can consult with an application engineer or use online resources for further assistance.
