VND5E050MCJTR-E - STMicroelectronics

Description: Double-channel high-side driver with analog current sense for automotive applications

Download VND5E050MCJTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

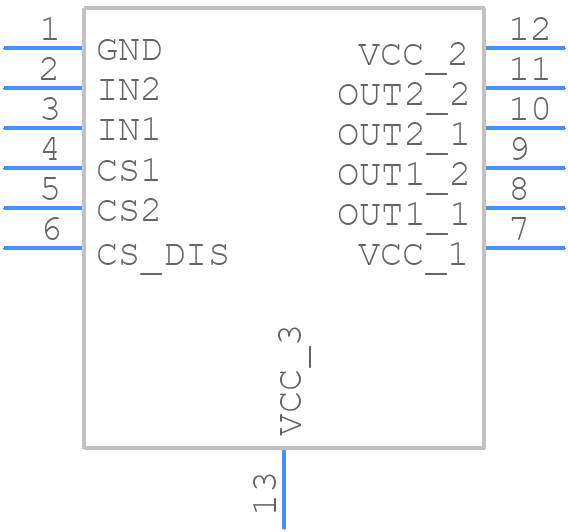

Symbol
VND5E050MCJTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E050MCJTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.62_2022
click to zoom
3D Models
VND5E050MCJTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.62_2022
click to zoom

VND5E050MCJTR-E Details

  • Manufacturer Part Number:

    VND5E050MCJTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VND5E050MCJTR-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VND5E050MCJTR-E is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended temperature range and power dissipation limits.
  • The recommended PCB layout and design considerations for the VND5E050MCJTR-E include using a multi-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and ensuring good thermal conductivity between the device and the PCB.
  • To troubleshoot issues with the VND5E050MCJTR-E, start by checking the device's operating conditions, such as temperature, voltage, and current. Verify that the device is properly soldered and that the PCB layout meets the recommended design considerations. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • Yes, the VND5E050MCJTR-E is a sensitive device and requires proper ESD protection measures during handling and assembly. This includes using ESD-safe workstations, wrist straps, and packaging materials, as well as following proper handling and storage procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5E050MCJTR-E Overview

Use the download button to access the VND5E050MCJTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
